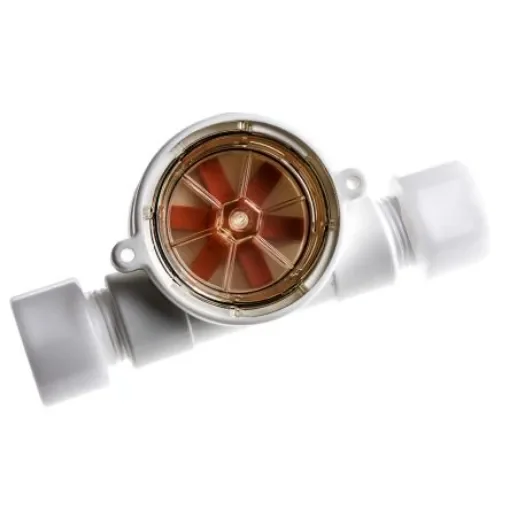

Gems Sensors RFI Series RotorFlow Flow Indicator for Liquid, 15 L/min Min, 75 L/min Max - 155480BSPP

Device Type = RotorFlow
Connection Type = 1/2 BSP Female
Maximum Pressure = 6.9bar
Maximum Media Temperature = +82°C
Maximum Operating Temperature = +82°C

Gems Sensors Flow IndicatorThe Gems Sensors RFI series rotor flow indicator sensor sense a liquid flow rate of 15L/min to 75L/min. It is a simple, direct and reliable, bright orange rotor turning with fluid flow. The flow rate is estimated, or confirmed, by observing the speed of the turning rotor. Either of the ports can be used for the incoming flow. Also, a new bayonet mounting lens is easily removed for quick cleanout. RFI type rotor flow sensors are easy to install and extremely affordable.Features and BenefitsPipe diameter range is 1/2in Removable lens for quick cleanout It is available in polypropylene body material Connection type is 1/2 BSP female Maximum operating pressure is 6.9bar Maximum operating temperature is 80°C Bright visual flow confirmationApplicationsVisual flow confirmation on heat exchangers Plastic injection moulding equipmentCertificationsCE certified cRUus certified
