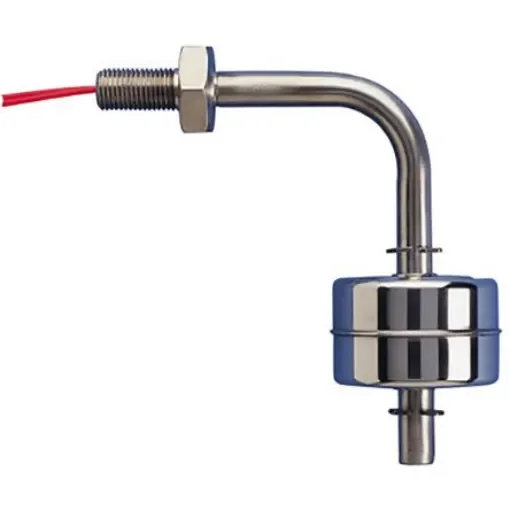

Gems Sensors LS-77700 Series Horizontal Stainless Steel Float Switch, Float, 610mm Cable, SPST NO, 240V ac Max - 118128
Reliable horizontal float switch for precise level control in liquids.
Manufacturer part number: 118128
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Device Type = Float
Mounting Type = Horizontal
Switch Output = SPST NO
Body Material = Stainless Steel
Cable Length = 610mm
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +149 (Oil) °C, +82.2 (Water) °C
Maximum AC Voltage = 240V
Maximum Current = 60 mA dc, 80 mA ac
Maximum Pressure = 300psi
Series = LS-77700
Standards Met = CE, cULus, UL Recognized File No E45168
Gems Sensors LS-77700 Series. Professional range of LS-77700 single-point level switches from Gems Sensors. The level switches bent stem provides great buoyancy of any side mount version. The LS-77700 series level switches perform in liquids with specific gravities as low as 0.45. All models are highly reliable and excellent quality. Features and Benefits. Vertical (± 30 degree) mounting attitude No 22 AWG, 24 inch long lead wires 20 VA SPST switch (120-240 VAC) Normally Open
