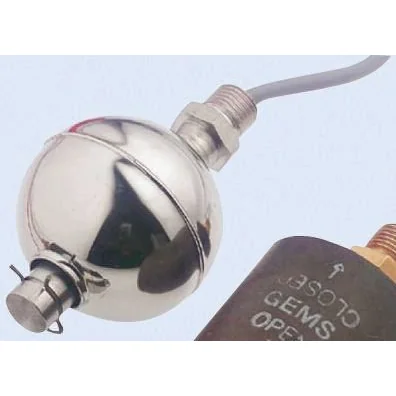

Gems Sensors Horizontal, Vertical Stainless Steel Float Switch, Float, 1m Cable, Relay - 010-0391

Device Type = Float
Mounting Type = Horizontal, Vertical
Switch Output = Relay
Body Material = Stainless Steel
Cable Length = 1m
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +150°C
Maximum Pressure = 30bar

Gems Sensors Float SwitchThe Gems Sensors float switch is designed for higher temperatures and in pressurized or corrosive liquids. It is an exceptionally accurate and rugged switch. It has mounting thread G1/4in Warning: The cable entry point must not be submerged under any circumstances They must be fitted through the wall of a tank on the horizontal switches so that the cable is on the outside On the vertical type, the mounting thread and cable entry must be above the highest level of the liquidFeatures and BenefitsOperating pressure is 30bar Depth of immersion is 30mm Min SG of liquids is 0.75 Reed switch is SPST 100V Electrical High temperature version AWG18 PTFECertificationsIP64 rated
