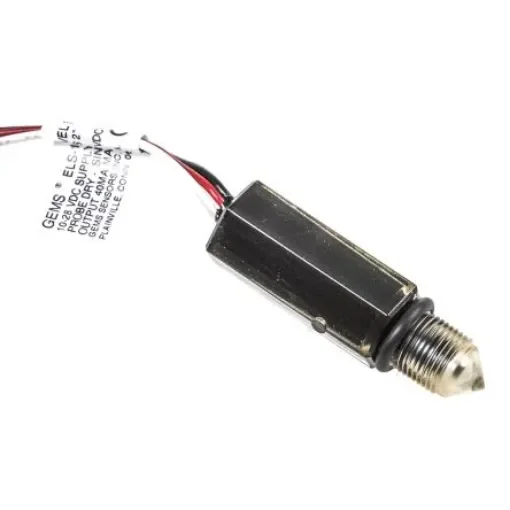

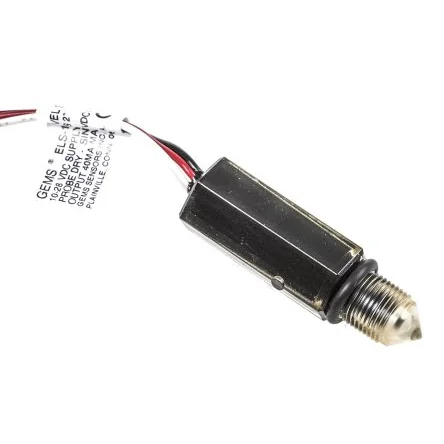

Gems Sensors Horizontal, Vertical Polysulfone Float Switch, Float, Direct Load - 169556

Gems Sensors Level SwitchThe Gems Sensors ELS-1100 series horizontal/vertical level switch has a polysulfone body. It has a maximum operating pressure of 150psi. The switch has a variety of mountings, power requirements and electrical terminations to make it easy to find a perfect match for your application. It can be mounted in any position as either a high or low-level alarm. The wet sinking switch is used in the presence of liquid and dry on the absence.Features and BenefitsDirect load switch output Small size Economically priced Built-in, solid-state electronics No moving part Triangular prism, not susceptible to droplets Simple, one-unit installation Current consumption 18mA Open collector output Non-ESD sensitive Polysulfone wetted parts Flange mount via 19mm hole or flush mount (M12 x 1mm) Electrical connection via lead wire 22awg PVC 0.3m Flange-mount versions with Viton seal are suitable for thin-walled tanksApplicationsMedical laboratory Food and beverage system Pharmaceuticals Petrochemicals Leak detection Hydraulic reservoirs Machine tool
