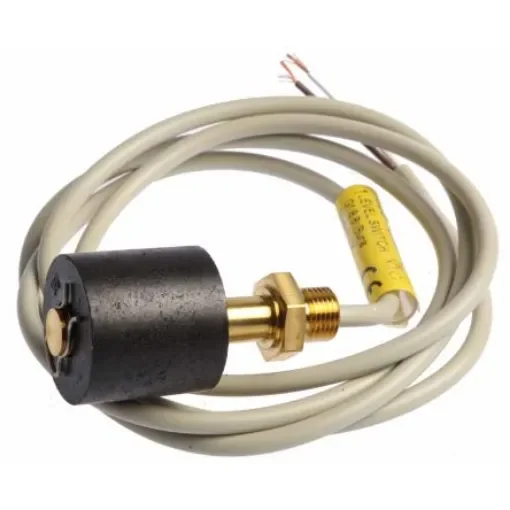

Gems Sensors Horizontal, Vertical Brass/NBR Float Switch, Float, 1m Cable, Relay - 011-1700

Manufacturer: Gems Sensors
Reliable float switch for liquid level control, featuring brass/NBR construction and a 1m cable.
Manufacturer part number: 011-1700
€87.94
i h
Ships to: France, Monaco
Device Type = Float
Mounting Type = Horizontal, Vertical
Switch Output = Relay
Body Material = Brass/NBR
Cable Length = 1m
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +80°C
Maximum Pressure = 10bar

Gems Sensors Metal SwitchThe Gems Sensors metal switch is the latest innovation that offers broad chemical compatibility for general purpose applications. This device is also ideal for oils and water. With SPST output, it will either be normally closed or opened. Depending on the orientation of the float, the position can be reversed. Warning: The cable entry point must not be submerged under any circumstances They must be fitted through the wall of a tank on the horizontal switches so that the cable is on the outside On the vertical type, the mounting thread and cable entry must be above the highest level of the liquidFeatures and BenefitsOperating pressure is 10bar Depth of immersion is 9mm Min SG of liquids is 0.45 Mounting thread is G1/8CertificationsIP64 rated
