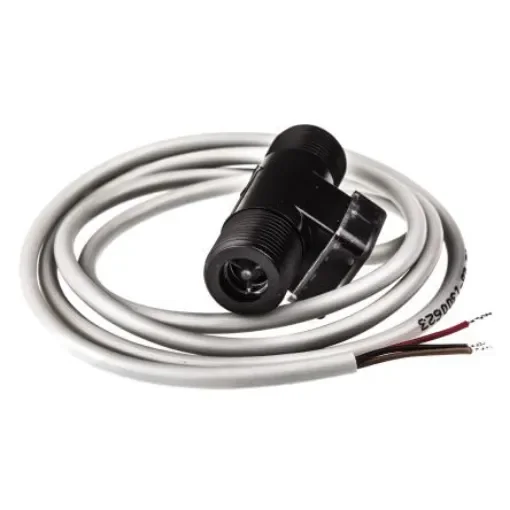

Gems Sensors FT-110 Series Turbine Flow Sensor for Liquid, 0.5 L/min Min, 5 L/min Max - 173936-C

Gems Sensors Turbine Flow SensorThe Gems Sensors FT-110 series hall effect turbine flow sensor sense a liquid flow rate of 0.5L/min to 5L/min. It is ideal for OEM applications involving low flow liquid monitoring. The low-cost coupled with 1/2% repeatability makes it an ideal candidate for replacing the dispensing timer system. Unlike the existing time system, turbine technology is not influenced by changes in system pressure caused by again filter. The sensor standard power and output specifications make it easy to retrofit to existing controllers.Features and BenefitsPipe diameter range is 3/8 in Low-cost plus high accuracy ±3% of reading It is available in Nylon 12 material Required supply voltage is 5VDC to 24VDC Connection type is 3/8 BSP Maximum operating pressure is 200psi Operating temperature rating ranges between -20°C and 100°CCertificationsFDA approved
