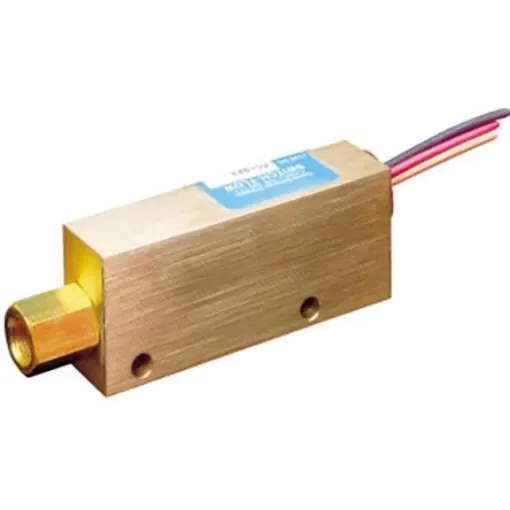

Gems Sensors FS-930 Series Piston Flow Sensor for Liquid, 0.75 gal/min Max - 51594

Media Monitored = Liquid
Device Type = Piston
Maximum Flow Rate = 0.75 gal/min
Pipe Diameter Range = 1/4 in
Connection Type = 1/4 NPT Female
Maximum Pressure = 69bar
Material = Brass
Minimum Operating Temperature = -29°C
Maximum Operating Temperature = +148.9°C

FS-930 Series Flow Switch. A unique, patented piston design assures accuracy within 20% over a full range of viscosities - from 40 to 1000 SSU. Ideal for use in applications where liquids of different viscosities are blended; or for use in lubrication systems where oil flow monitoring is critical at start-ups. Switch compensates for viscosity changes automatically. Each unit is factory preset, using 300 SSU oil, for actuation at specified flow rates. Features and Benefits. Flow Rate Settings: 0.38 LPM to 4 LPM. Port Size: "" NPT. Primary Construction Material: Brass. Setting Type: Fixed. Product Application Information. Electronic Equipment: Laser Heads, Welders, Power Supplies, High-Speed Spindles, X-Ray Tubes, Semiconductor Equipment. Bearings or Gears: Presses, Rotating Equipment, Conveyors, Machine Tools, Robotics. Processing and Dispensing Equipment: Water Purifications and Filtering, X-Ray Film Processing, Beverage Dispensing, Chemical Additives, Gas Sampling, Distilling
