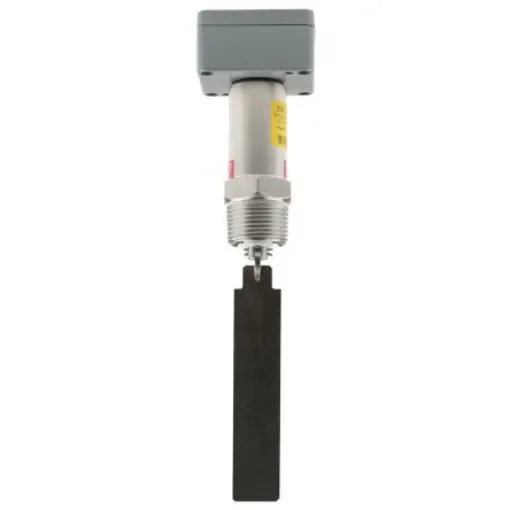

Gems Sensors FS-550E Series Paddle Flow Sensor for Liquid, 15 L/min Min, 125 L/min Max - 020-3499

Media Monitored = Liquid
Minimum Flow Rate = 15 L/min
Maximum Flow Rate = 125 L/min
Pipe Diameter Range = 1 in
Material = Stainless Steel
Minimum Operating Temperature = -18°C
Series = FS-550E

Gems Sensors Flow SwitchThe Gems FS-550E series flow switch has a liquid flow rate of 15L/min to 125L/min. This switch senses the liquid flow in either direction to monitor flow/ no-flow conditions. The paddle is trimmed during installation to permit switch actuation at the desired flow rate. As the flow increases, the paddle pivots to move out of the liquid path, producing less than 200MB of pressure drop regardless of pipe size.Features and BenefitsPipe diameter range is 1in Connection type is 1 BSP Stainless steel housing with terminal box electrical connection Minimum inline restriction Paddle pivots to move out of liquid path with increasing flow Operating temperature is maximum 150°C Maximum flow determined by the pipe inside diameter Operating pressure is 55bar Pressure drop is 0.2bar SPDT switching function Mounting R 1in Electrical connection is terminal boxApplicationsCompressors Heat exchangers Turbines Engine Boilers Chillers Valves Pumps RegulatorsCertificationsIP65 rated
