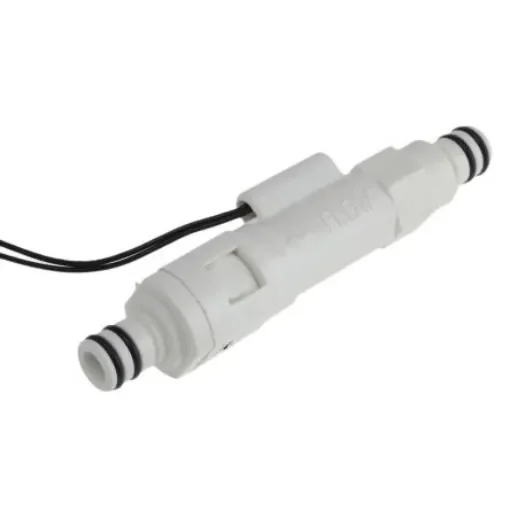

Gems Sensors FS-380P Series Piston Flow Switch for Liquid, 1 gal/min Max - 197093

Media Monitored = Liquid
Device Type = Piston
Maximum Flow Rate = 1 gal/min
Supply Voltage = 200 V
Pipe Diameter Range = 1/4 in
Connection Type = 1/4 Quick Disconnect Male
Maximum Pressure = 8.6bar
Material = Glass Reinforced PP
Minimum Media Temperature = -18 °C
Maximum Media Temperature = +100°C
Minimum Operating Temperature = -18°C
Series = FS-380P°C

FS-380P Series Flow Switch. This rugged inline flow switch offers the same superior performance and resistance to clogging as its metal cousin (FS-380). The fixed set point and simple design make it a dependable switch. The FS-380P is an ideal choice for coolant applications requiring reliable flow detection in HVAC, semiconductor, welding, medical and other industries. 6 mm (") quick disconnect units have a host of snap-on mating fittings sold separately to fit most piping requirements. Features and Benefits. Low-pressure drop design. Flow rate settings: 1 LPM to 8 LPM. Port size: 3/8"" NPT male and "" quick disconnect (QDC) male. Primary construction material: Polypropylene. Setting type: Fixed. Product Application Information. Electronic Equipment: Laser heads, welders, power supplies, high-speed spindles, x-ray tubes, semiconductor equipment. Bearings or Gears: Presses, rotating equipment, conveyors, machine tools, robotics. Processing and Dispensing Equipment: Water purifications and filtering, x-ray film processing, beverage dispensing, chemical additives, gas sampling, distilling
