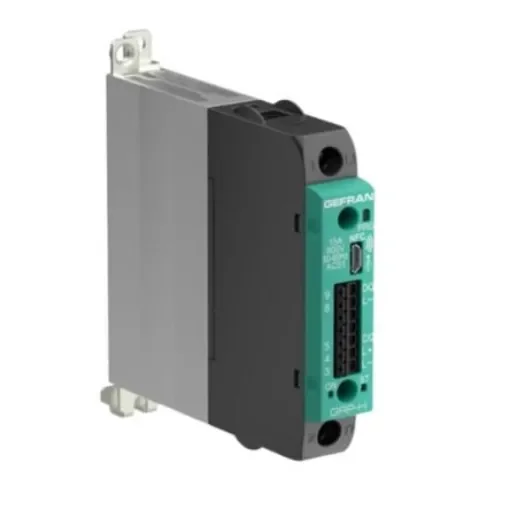

Gefran GRP-H Series Solid State Relay, 120 A Load, DIN Rail Mount, 480 V ac Load, 530 V ac Control - GRP-H-120-48-AN-1-FAN62-0-3-0-0
Gefran's 120A Solid State Relay offers reliable performance for high-load applications.
Manufacturer part number: GRP-H-120-48-AN-1-FAN62-0-3-0-0
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Maximum Load Current = 120 A
Mounting Type = DIN Rail
Maximum Load Voltage = 480 V ac
Maximum Control Voltage = 530 V ac
Series = GRP-H
