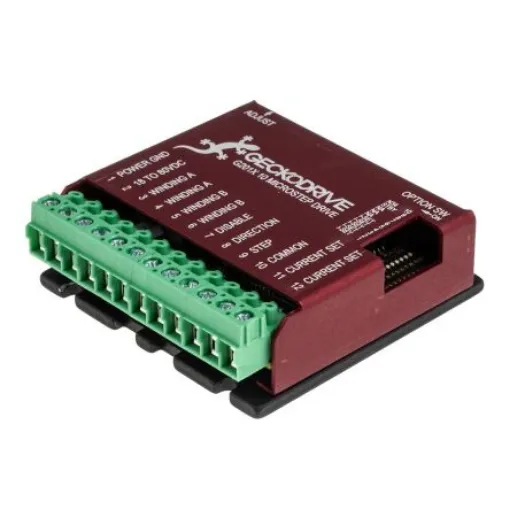

Geckodrive Stepper Motor Controller, 7 A, 80 V dc - G201X
High-performance stepper motor controller with 7A capacity and 80V DC compatibility.
Manufacturer part number: G201X
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Current Rating = 7 A
Voltage Rating = 80 V dc
Overall Length = 63.5mm
Overall Width = 21mm
Overall Depth = 65.5mm
G201X - Step Motor Drive. The G201X is a stepper motor drive with an aluminium case. Drives stepper motors up to 7 Amps. STEP and DIRECTION inputs are +3.3/5 VDC compatible Recirculate mode during STANDBY greatly reduces motor heating while stopped Power-on RESET Direction is clocked in on the active step pulse edge DIP switch settings for current and motor version Needs heatsinking for current settings greater than 3 amps Low motor heating while stopped Power supply voltage between 18 and 80 VDC Aluminium cover and plate Connector type is Modular, 5mm pitch
