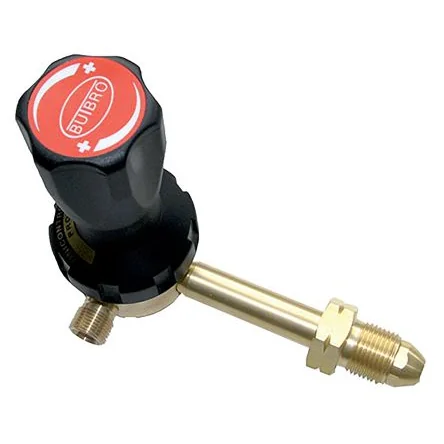

GCE Pressure Regulator for use with Propane - 0783656RS

Accessory Type = Gas Welding Regulator
Inlet Pressure = 25bar
Outlet Pressure = 4bar
Inlet Connection Size = G 5/8
Outlet Connection Size = G 3/8
For Use With = Propane

BS-341. ISO2503. GCE Unicontrol Single Stage Regulators. UNICONTROL single stage cylinder regulators are pressure regulators that conform to ISO2503. The regulators are designed to give you excellent performance complete with robustness, durability and safety. The well proven regulators use a fully encapsulated which is filter protected. The single stage regulators have a bottom entry plus an integrated pressure relief valve. The valve is at the rear of the body preventing users changing the factory settings. The zinc die-cast bonnet is protected by a double layer powder painting, ensures corrosion resistance in aggressive environments. FEATURES and BENEFITS:. Colour coded control elements Non-detachable ergonomic plastic control knob Maximum outlet pressure locked for operation safety Inlet connections complying with BS-341 standards Corrosion resistant die-cast bonnet Clear and precise 63 mm gauges Technical data marked on rear side of body Safety on the rear of the body – non-adjustable Bonnet powder painted for corrosion resistance Body is forged from high-quality brass. TECHNICAL DATA:. Diaphragm – 55 mm diameter – reinforced EPDM rubber Encapsulated valve – Brass body sealed by PA or high grade chloroprene rubber Pressure gauges – Non-bulkhead 63 mm, class 2.5%, scale calibrated in bar Intel stem and nut – Brass, geometry complying with BS-341 standard Safety valve – Non-adjustable, plastic housing Control elements – Ergonomic PA control know, captive pressure adjusting screw
