The Garmin Panoptix LiveScope Plus System with GLS 10 and LVS34 Transducer is a cutting-edge GPS sonar system designed to provide anglers with unparalleled precision and clarity. This system offers superior resolution, noise reduction, clearer images, and enhanced target separation, ensuring an optimal fishing experience.
- Real-Time Imaging: Delivers live sonar images with exceptional accuracy, allowing anglers to observe underwater structures and fish movements in real-time.
- Enhanced Image Quality: Improves screen clarity, transducer sensitivity, and target separation, resulting in sharper images with reduced noise and fewer sonar artifacts.
- Vivid Color Palettes: Offers seven vivid color options—including Aqua, Caribbean, Lava, and more—to maximize contrast and clarity in images.
- Multiple Viewing Modes: Supports Forward, Down, and Perspective modes, providing versatile viewing options to suit various fishing scenarios.
- Easy Installation: The GLS 10 sonar black box and LVS34 transducer are straightforward to install, allowing anglers to focus on their fishing activities.
Technical Specifications
Sonar Module (GLS 10)
- Dimensions: 9.7" x 5.9" x 2.6" (24.5 x 14.9 x 6.5 cm)
- Weight: 4.3 lbs (2.0 kg)
- Waterproof Rating: IPX7
- Operating Temperature Range: -15°C to 70°C
- Power Input: 10-32 V
- Power Usage: 21 W typical, 58 W max
- Transmit Power: 500 W
- Fuse: 7.5 A
- Compass-Safe Distance: 4" (0.1 m)
- Frequency: 530 - 1,100 kHz
- Maximum Depth (Down and Forward): 200’ (61.0 m)
- Minimum Depth: 3' (0.91 m)
- Beamwidth: 20° x 135°
- Transducer Cable Length: 20 ft
- Transducer Number of Pins: 21
Transducer (LVS34)
- Dimensions: 6.4" x 3.1" x 1.9" (16.2 x 7.8 x 4.8 cm)
- Weight: 2.25 lbs (1.02 kg)
- Operating Temperature Range: 0°C to 40°C
- Minimum Depth: 3' (0.91 m)
- Maximum Depth (Down and Forward): 200’ (61.0 m)
- Beamwidth: 20° x 135°
- Transducer Cable Length: 20 ft
- Transducer Number of Pins: 21
Materials
The system components are constructed with high-quality materials to ensure durability and longevity in marine environments. Specific material details are not provided in the available sources.
Dimensions
- Sonar Module (GLS 10): 9.7" x 5.9" x 2.6" (24.5 x 14.9 x 6.5 cm)
- Transducer (LVS34): 6.4" x 3.1" x 1.9" (16.2 x 7.8 x 4.8 cm)
Compatibility Information
The LVS34 transducer is compatible with the GLS10 sonar module and can be used with various Garmin chartplotters, including the GPSMAP 8400/8600 series, GPSMAP x2 Plus, GPSMAP x3, ECHOMAP Ultra combo, ECHOMAP UHD 7", and ECHOMAP UHD 9".
In the Box

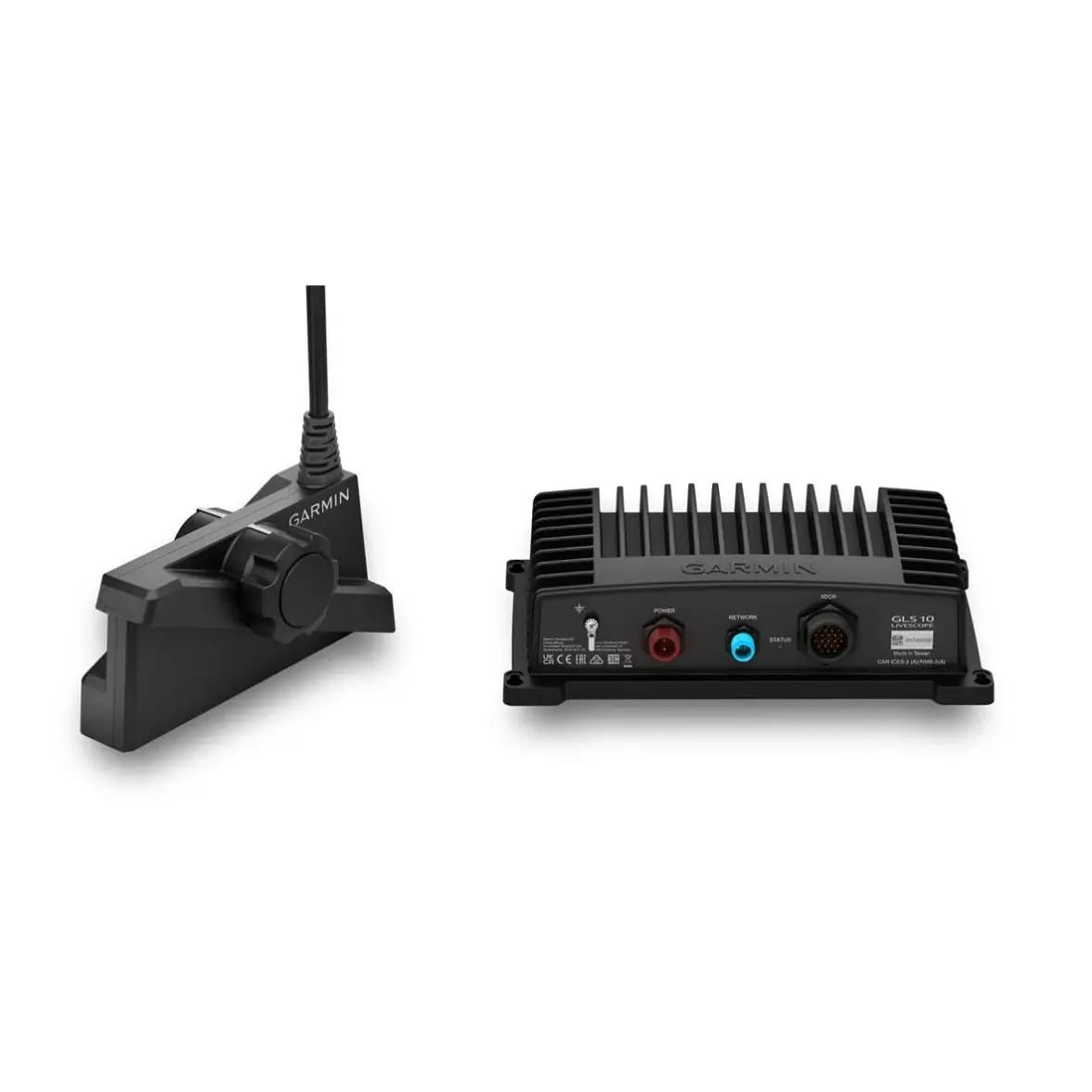

- LiveScope GLS 10 sonar black box
- Panoptix LVS34 transducer
- Perspective mount
- Trolling motor barrel mount
- Shaft mount
- Power cable
- 2-meter Garmin Marine Network cable (small connector)
- Network adapter cable
- Documentation
