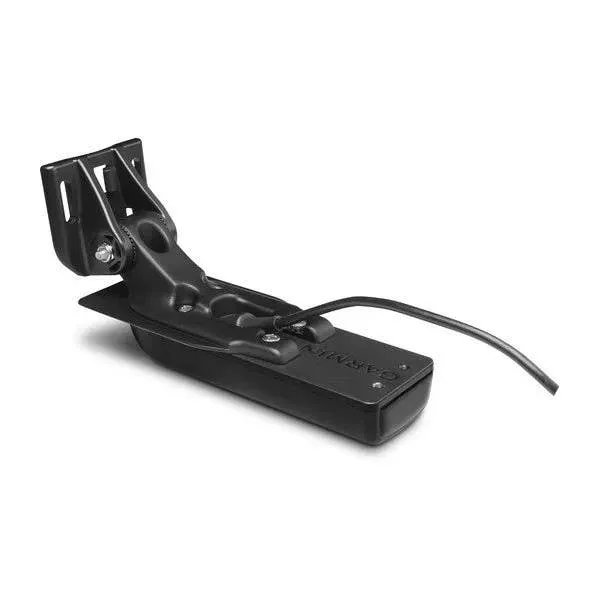

The Garmin GT54UHD-TM is an all-in-one transducer that delivers ultra-high-definition sonar imaging, combining ClearVü, SideVü, and traditional CHIRP sonar technologies to provide comprehensive underwater views.
- All-in-One Transducer: Integrates ClearVü, SideVü, and traditional CHIRP sonar for detailed underwater imaging.
- High-Resolution Imaging: Offers the highest resolution ClearVü and SideVü scanning sonar images available, along with clear high wide CHIRP traditional sonar.
- ClearVü Sonar: Provides detailed images of fish and structures up to 200 feet (60 meters) below the boat with 800 kHz frequency.
- SideVü Sonar: Offers extended range up to 500 feet (150 meters) with two frequency settings (455/1,200 kHz).
- Easy Installation: Compact design includes transom and trolling motor mounts for straightforward setup.
Technical Specifications:
- Frequency:
- Traditional CHIRP: 150-240 kHz
- Ultra High-Definition ClearVü CHIRP: 760-880 kHz
- Ultra High-Definition SideVü: 1,020-1,230 kHz
- SideVü: 425-485 kHz
- Transmit Power:
- Traditional CHIRP: 350 W
- ClearVü/SideVü: 350 W
- Beam Width:
- Traditional CHIRP: 16°-24°
- ClearVü: 0.94° x 60° at 800 kHz
- SideVü: 1.62° x 50°
- Ultra High-Definition SideVü: 0.441° x 52° at 1,200 kHz
- Maximum Depth:
- Traditional CHIRP: 800 feet (243 meters)
- ClearVü: 200 feet (60 meters)
- SideVü: 500 feet (150 meters)
- Ultra High-Definition SideVü: 125 feet (38 meters)
- Cable Length: 20 feet (6 meters)
- Number of Pins: 12-pin connector
- Supported Deadrise/Transom Angles: 0°-70°
The transducer is constructed with durable materials suitable for marine environments, ensuring longevity and reliable performance.
The GT54UHD-TM is compatible with Garmin ECHOMAP UHD, ECHOMAP Ultra, and GPSMAP 8400xsv chartplotter/sonar combo models.
In the Box:
- GT54UHD-TM Transducer
- Transom Mount
- Trolling Motor Mount
- Mounting Hardware
- Documentation
