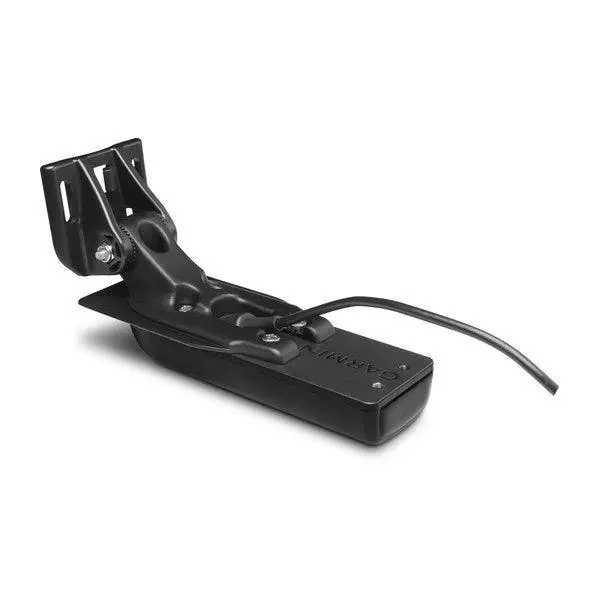

The Garmin GT52HW-TM Transom Mount Transducer is engineered for freshwater anglers seeking advanced sonar capabilities. This versatile transducer offers 2D CHIRP, ClearVü CHIRP, and SideVü CHIRP scanning sonar technologies, delivering clear fish arches, superior target separation, and detailed imaging of structures beneath and beside the boat.
- 2D CHIRP Sonar: Provides high-resolution imaging with improved target definition and separation.
- ClearVü CHIRP: Offers detailed images of the underwater environment, accurately representing structures below the boat.
- SideVü CHIRP: Delivers near-photographic quality images of the seabed on both sides of the boat simultaneously.
- Compact Design: Ideal for mounting on trolling motors due to its compact size.
- Temperature Sensor: Equipped with a temperature sensor for precise water temperature readings.
Technical Specifications
- Transducer Frequency: Traditional CHIRP: 150-240 kHz; ClearVü CHIRP: 425-485 kHz and 790-850 kHz
- Transmit Power: Traditional CHIRP: 250 W; ClearVü/SideVü: 350 W each (1,050 W total)
- Beamwidth: Traditional CHIRP: 24°-16°; ClearVü/SideVü: 2.0°x50° at 455 kHz and 1.0°x30° at 800 kHz
- Maximum Depth: Traditional CHIRP: 800 ft.; ClearVü/SideVü: 500 ft.
- Cable Length: 20 ft.
- Number of Pins: 12-pin connector
- Supported Deadrise/Transom Angles: 0°-70° degree transom
Materials: Plastic housing for durability and resistance to marine environments.
Dimensions: 155 x 52 x 26 mm
Compatibility Information
The GT52HW-TM transducer is compatible with various Garmin fishfinders and chartplotters, including:
- Garmin Fishfinders: STRIKER 4dv, 5dv, and 7dv series; STRIKER 7sv series; echoMAP CHIRP 4Xdv and 5Xdv combo series; echoMAP CHIRP 7Xdv combo series; echoMAP CHIRP 7Xsv and 9Xsv combo series; GPSMAP 8X0xs and 10X0xs combo series; GPSMAP 5X7xs and 7X1xs combo series; GPSMAP 7400xsv and 7600xsv combo series; GSD™ 25 digital sonar
*Note: Some models may require additional adapter cables for compatibility.*
In the Box
- GT52HW-TM Transducer
- Transom Mount
- Trolling Motor Mount
- Mounting Hardware
- Documentation
