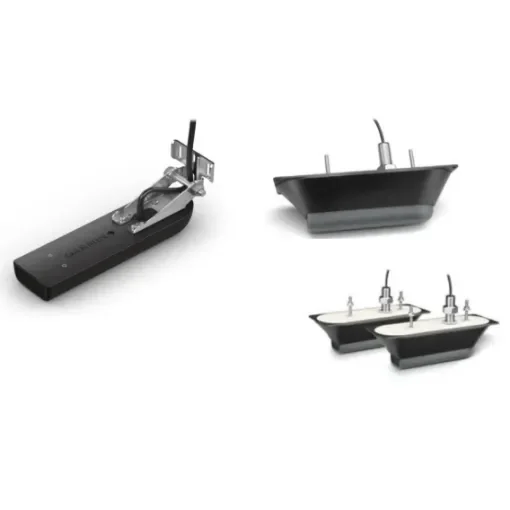

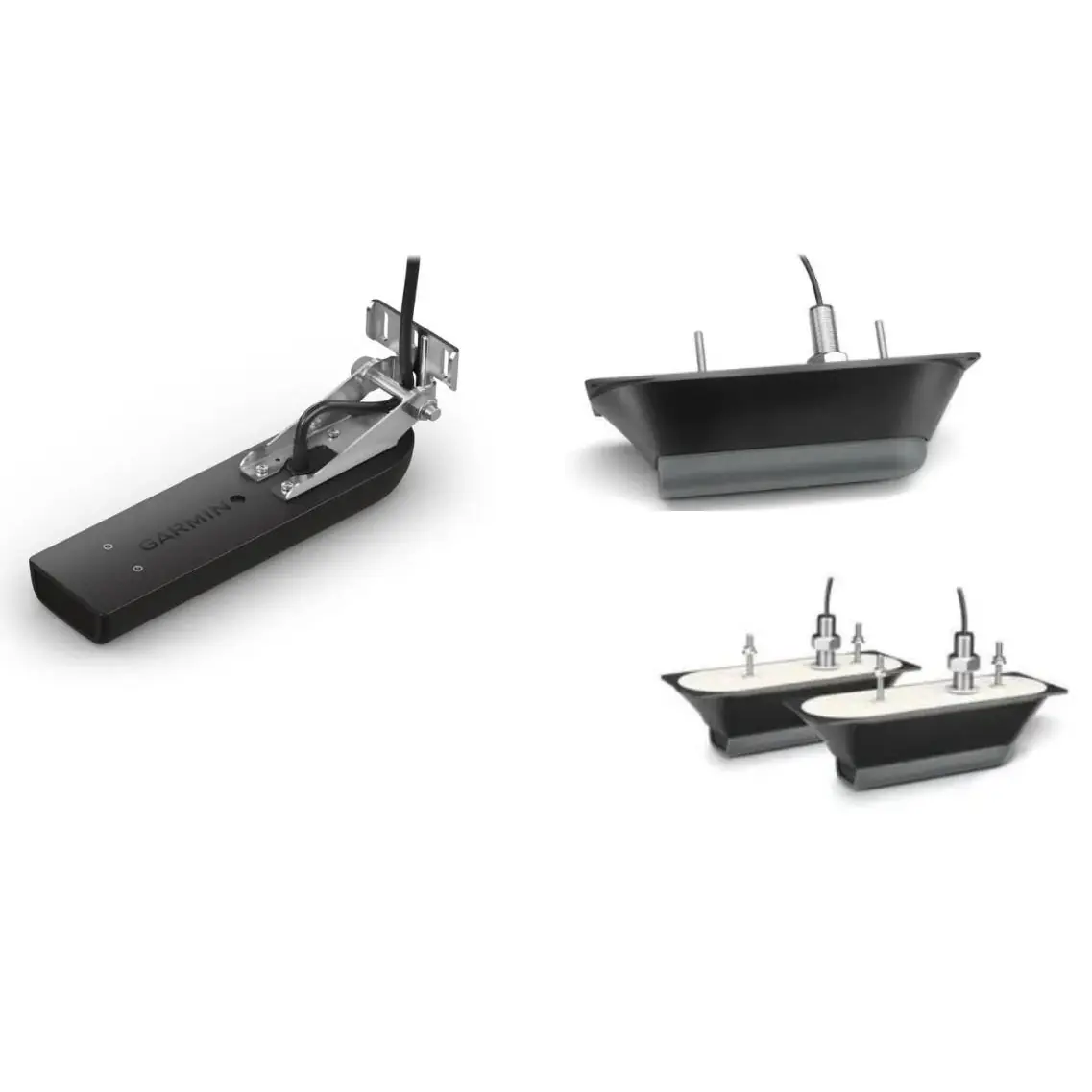

The Garmin GT51M Transducer Series offers advanced sonar capabilities for both transom and through-hull installations, providing clear imaging of underwater structures, fish, and the seafloor. Optimized for deep water and challenging conditions, these transducers deliver superior target separation and detailed imagery.
- Sonar Technologies:
- 2D CHIRP Sonar: Delivers enhanced target definition and clearer fish arches.
- ClearVü CHIRP: Provides detailed images of structures beneath the boat.
- SideVü CHIRP: Offers near-photographic quality images of the seabed on both sides of the boat.
- Power Ratings:
- Traditional CHIRP Mode: 600 W transmit power.
- ClearVü/SideVü CHIRP Mode: 500 W per element, totaling 1,500 W.
- Frequency Bands:
- Traditional CHIRP: 80-160 kHz.
- ClearVü/SideVü CHIRP: 260/455 kHz.
- Beamwidth:
- Traditional CHIRP: 24°-13°.
- ClearVü/SideVü:
- 2.0° x 51° at 260 kHz.
- 1.4° x 29° at 455 kHz.
- Maximum Depth:
- Traditional CHIRP: Up to 1,800 ft.
- ClearVü: Up to 1,000 ft.
- SideVü: Up to 750 ft.
- Temperature Sensor: Built-in fast-response temperature sensor.
Materials:
- Transom Mount Model (GT51M-TM): Plastic housing.
- Through-Hull Models (GT51M-TH and GT51M-THP): Stainless steel stem.
Dimensions:
- Transom Mount Model (GT51M-TM):
- Cable Length: 9 meters (30 feet).
- Through-Hull Models (GT51M-TH and GT51M-THP):
- Cable Length: 5 feet plus 30 feet extension cable.
Compatibility Information:
The GT51M Transducer Series is compatible with various Garmin chartplotters and fishfinders, including:
- Garmin EchoMAP CHIRP Series: SV models.
- Garmin GPSMAP xsv Series: xsv models.
- Garmin STRIKER Plus SV Series: SV models.
- Garmin STRIKER Vivid SV Series: SV models.
