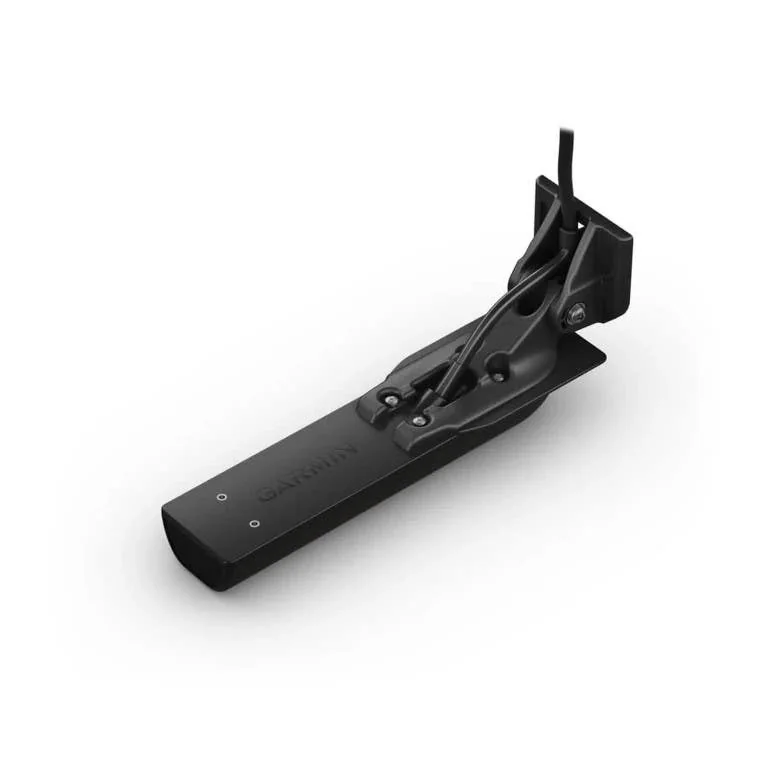

Garmin - GT36UHD-TM Transom Mount Transducer - 010-13072-00

Manufacturer: Garmin
Experience superior fishing with Garmin's Ultra HD sonar for clear imaging of fish and structures.
Manufacturer part number: 010-13072-00
GTIN: 0753759269319
Vendor: Cabesto
Availability: In stock
€419.00
i h

The Garmin GT36UHD-TM is a versatile transom mount transducer designed to enhance your fishing experience with Ultra High-Definition ClearVü and SideVü scanning sonar technologies. It provides crystal-clear images of fish and underwater structures, allowing you to spend more time fishing and less time searching.

  • Ultra High-Definition ClearVü Scanning Sonar: Delivers brilliant image clarity of structures and fish beneath your boat at depths up to 400 feet, surpassing other high-frequency scanning sonars.
  • Ultra High-Definition SideVü Scanning Sonar: Offers stunningly clear images of structures and fish to the sides of your boat, with a 20% greater range at 1,000 kHz, extending your observation area.
  • Multiple Scanning Sonar Frequencies: Supports 455 kHz, 800 kHz, and 1,000 kHz frequencies, providing optimal performance across various depths.
  • Vivid Color Palettes: High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structures.
  • Mounting Options: Includes both transom and trolling motor mounting hardware to accommodate different boat setups.

Technical Specifications

  • Frequencies Supported: ClearVü/SideVü: 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1,000 kHz (940-1,100 kHz)
  • Transmit Power (RMS): ClearVü: 500 watts, SideVü: 500 watts
  • Beamwidth: ClearVü: 0.52° x 52° at 1,000 kHz, 0.64° x 35° at 800 kHz, 1.1° x 52° at 455 kHz; SideVü: 0.52° x 52° at 1,000 kHz, 0.64° x 35° at 800 kHz, 1.1° x 52° at 455 kHz
  • Maximum Depth: ClearVü at 455 kHz: 400 feet, ClearVü at 1,000 kHz: 200 feet, SideVü at 1,000 kHz: 200 feet to each side (400 feet total) at a maximum of 50 feet, SideVü at 455 kHz: 500 feet to each side (1,000 feet total) at a maximum of 100 feet
  • Supported Deadrise/Transom Angles: 0° to 70°
  • Operating Temperature Range: 32°F to 122°F
  • Storage Temperature Range: -40°F to 158°F
  • Cable Length: 25 feet
  • Number of Pins: 12

Materials: The transducer is constructed with durable materials suitable for marine environments, ensuring longevity and reliable performance.

Dimensions

  • Without Mount: 218.5 mm x 51.8 mm x 27.7 mm

Compatibility Information

The GT36UHD-TM is compatible with various Garmin chartplotters, including: GPSMAP® 8400xsv and 8600xsv series, ECHOMAP Ultra series, ECHOMAP UHD sv series, GCV 20. Please ensure your chartplotter's software is updated to work with this transducer.
