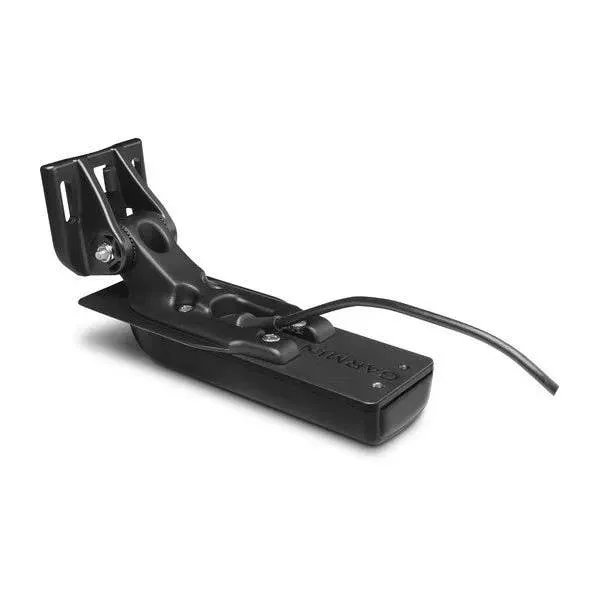

The Garmin GT24UHD-TM is an all-in-one transducer that delivers ultra-high-definition ClearVü scanning sonar images and high-wide CHIRP traditional sonar, providing exceptional clarity and target separation. It offers detailed imaging of fish and structures up to 200 feet (60 meters) below your boat, with a frequency of 800 kHz for ClearVü and 150-240 kHz for CHIRP. The transducer features a compact, easy-to-install design, including transom and trolling motor mounts, and is compatible with Garmin ECHOMAP UHD CV, ECHOMAP Ultra, and GPSMAP 8400xsv chartplotter/sonar combos.
- Frequency: Traditional CHIRP: 150-240 kHz; Ultra High-Definition ClearVü: 800 kHz (CHIRP range: 760-880 kHz)
- Power: Traditional CHIRP: 350 W; ClearVü: 350 W
- Beamwidth: Traditional CHIRP: Adjustable from 16° to 24°; ClearVü: 0.94° x 60° at 800 kHz
- Maximum Depth: Traditional CHIRP: 800 ft. (243 meters); ClearVü: 200 ft. (60 meters)
- Cable Length: 20 ft. (6 meters)
- Number of Pins: 8
- Supported Deadrise/Transom Angles: 0°-70°
- Depth/Speed/Temperature: Depth and Temperature
The transducer is constructed with durable materials suitable for marine environments, ensuring longevity and reliable performance.
