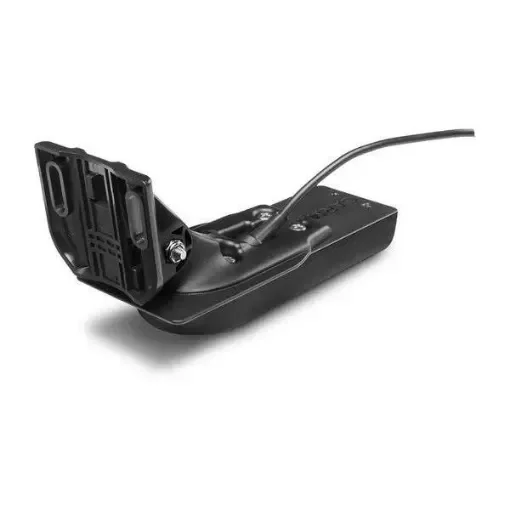

The Garmin GT22HW-TM is a versatile transom or trolling motor-mounted transducer designed for freshwater anglers seeking both traditional CHIRP sonar and CHIRP ClearVü scanning sonar capabilities. This transducer delivers clear and crisp fish arches with superior target separation and detailed structure definition beneath the boat.
- Dual Sonar Capabilities: Offers both traditional CHIRP sonar and CHIRP ClearVü scanning sonar for comprehensive underwater imaging.
- Compact Design: Ideal for mounting on transoms or trolling motors, accommodating deadrise angles from 0° to 70°.
- Temperature Sensor: Equipped with a built-in temperature sensor for accurate water temperature readings.
Technical Specifications
- Frequency:
- Traditional CHIRP Sonar: 150-240 kHz
- ClearVü CHIRP Sonar: 455 kHz (425-485 kHz) and 800 kHz (790-850 kHz)
- Transmit Power:
- Traditional CHIRP Sonar: 250 W
- ClearVü Sonar: 350 W
- Beam Width:
- Traditional Sonar: 24°-16°
- ClearVü Sonar: 2.0° x 50° at 455 kHz and 1.0° x 30° at 800 kHz
- Maximum Depth:
- Traditional Sonar: 800 ft (243.8 m)
- ClearVü Sonar: 500 ft (152.4 m)
- Cable Length: 20 ft (6.1 m)
- Connector Type: 8-pin
- Material: Plastic
Compatibility Information
The GT22HW-TM is compatible with various Garmin devices, including:
- echoMAP CHIRP Series: 4Xdv, 5Xdv, 7Xdv, 7Xsv, 9Xsv
- STRIKER Series: 4dv, 5dv, 7dv
- GPSMAP Series: 8X0xs, 10X0xs, 5X7xs, 7X1xs, 7400xsv, 7600xsv
For a comprehensive list of compatible devices, please refer to the manufacturer's website.
