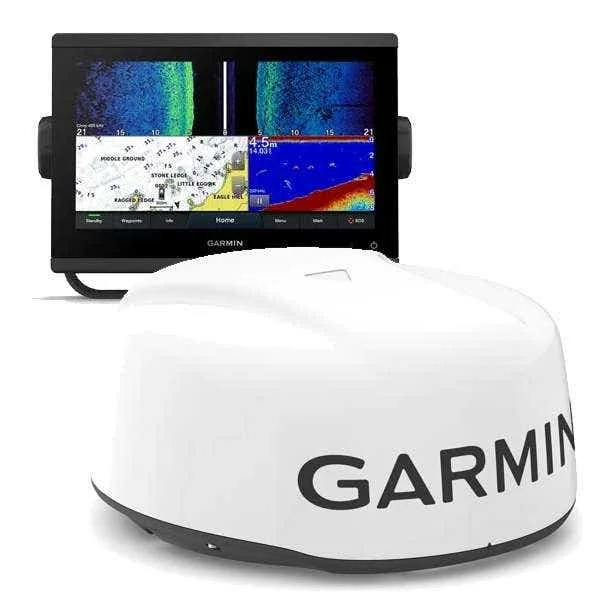

GPSMAP 923xsv – Multifunction Tracker with Integrated Sonar and Radar
An Advanced Tracker with Ultra High Definition Sonar and Garmin Radar
The Garmin GPSMAP 923xsv is a multifunction navigation tracker designed to provide a complete and intuitive navigation experience, with advanced sonar features and perfect integration with your Garmin marine system. With a high-resolution touchscreen, extensive network connectivity, and premium mapping capabilities, this tracker is ideal for discerning sailors seeking precision and ease of use.
Features
- High-Resolution IPS Display: Enjoy ultra-clear display and vibrant colours with a 9-inch WXGA screen. Ideal for perfect readability even in bright sunlight, with a resolution of 1280 x 720 pixels.
- Integrated Ultra High Definition Sonar: Benefit from ClearVü and SideVü scanning sonar technology with high-contrast colours for better distinction of fish and underwater structure.
- Compatibility with Panoptix™ and LiveScope™: Connect your tracker to Garmin Panoptix™ or LiveScope™ sonars to view the environment around your boat in real-time (sonars sold separately).
- Optional Garmin 18 HD+ Radar System: Add a GMR™ 18 HD+ radar for better safety management at sea, allowing you to spot boats and bad weather (optional).
- Garmin and Navionics® Premium Mapping: Compatible with high-quality maps such as BlueChart g3, Garmin Navionics+™, and LakeVü g3, for optimal navigation in coastal and inland waters.
Technical Information:
Dimensions: 23.3 x 16.2 x 7.6 cm (9.2 x 6.4 x 3 in)
Weight: 1.6 kg (3.6 lb)
Display: WXGA, 9 inches (22.9 cm diagonal), 1280 x 720 pixels, high resolution
Connectivity: NMEA 2000® ports, NMEA 0183, Wi-Fi®, Bluetooth®, ANT+, Garmin Marine Network™
Memory Card: 2 microSD™ cards for additional storage
Sensors: GPS, GLONASS, Galileo, high-sensitivity antenna at 10 Hz
Power Supply: 10-32 Vdc, maximum consumption of 40.2W
Integrated Sonar: Traditional CHIRP sonar, ClearVü and SideVü
Water Resistance: IPX7 (splash resistant and temporary immersion)
Package Contents
