Garmin - GPSMAP 923xsv Chartplotter with Sonar - 010-02366-02

Manufacturer: Garmin
Experience superior marine navigation with the Garmin GPSMAP 923xsv, featuring advanced sonar and worldwide mapping.
Manufacturer part number: 010-02366-02
GTIN: 0753759250546
Vendor: Cabesto
Availability: In stock
€1789.00
i h

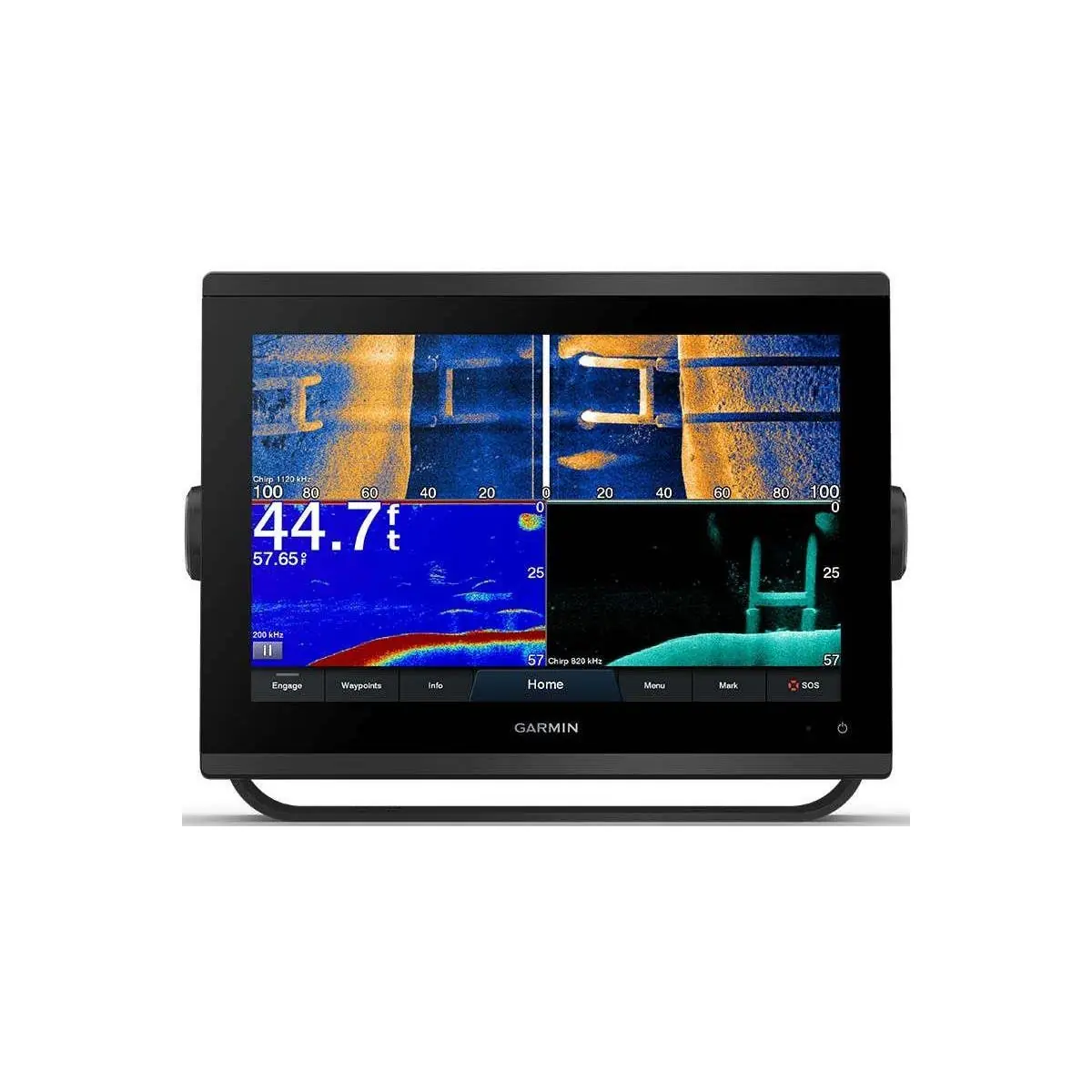

The Garmin GPSMAP 923xsv is a high-performance 9-inch chartplotter and fishfinder designed to enhance your marine navigation and fishing experience. Featuring a high-resolution IPS touchscreen, it offers improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9-inch GPSMAP devices.

  • Built-in Sonar Capabilities: Equipped with Ultra High-Definition SideVü and ClearVü scanning sonars, providing vivid, high-contrast color palettes to help distinguish fish from structures. Supports 1 kW CHIRP traditional sonar capabilities.
  • Panoptix™ Sonar Support: Compatible with Panoptix or Panoptix LiveScope™ live sonar (transducer sold separately) to see all around your boat in real-time.
  • Improved Display Optics: Higher-resolution 9-inch IPS display offers enhanced sunlight readability and visibility from any angle.
  • Preloaded Mapping: Comes with built-in Garmin Navionics+™ integrated coastal and inland mapping, including Auto Guidance+™ technology and a 1-year subscription for downloadable daily updates.
  • Optional Chart Upgrades: Supports optional Garmin Navionics Vision+™ premium chart subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery, and more.
  • Sailing Features: Includes Garmin SailAssist™ sailing features such as laylines, race start line guidance, enhanced wind rose, and more.
  • Connectivity: Built-in Wi-Fi® connectivity pairs with the free ActiveCaptain® app for access to OneChart™, smart notifications, software updates, and more.

Technical Specifications:

  • Display Size: 9.0" diagonal (22.9 cm)
  • Display Resolution: 1280 x 720 pixels
  • Display Type: WXGA
  • Dimensions: 9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm)
  • Weight: 3.6 lbs (1.6 kg)
  • Waterproof Rating: IPX7
  • Power Input: 10 to 32 Vdc
  • Typical Current Draw at 12 Vdc: 1.37 A
  • Maximum Current Draw at 12 Vdc: 3.20 A
  • Maximum Power Usage at 10 Vdc: 40.2W
  • Mounting Options: Bail, flush, or flat (professional tools and knowledge required for flat-mount installation)
  • Receiver: 10 Hz high-sensitivity
  • NMEA 2000® Compatible: Yes
  • NMEA 0183 Compatible: Yes
  • Supports WAAS: Yes
  • Supports GLONASS: Yes
  • Supports Galileo: Yes
  • Supports ActiveCaptain® App: Yes
  • Supports OneHelm™ Feature: Yes
  • Supports Fusion-Link™ Compatible Radios: Yes
  • Supports AIS: Yes
  • Supports DSC: Yes
  • Supports GSD™ Black Box Sonar: Yes
  • Supports GCV™ Black Box Sonar: Yes
  • Supports GRID™ (Garmin Remote Input Device): Yes
  • Supports Wireless Remote: Yes
  • Supports Sailing Features: Yes
  • Supports Smart Mode: Yes
  • Supports Panoptix™ Sonar: Yes
  • Supports LiveScope: Yes
  • Supports BlueChart® g3: Yes
  • Supports LakeVü g3: Yes
  • Supports Garmin Quickdraw Contours: Yes
  • Supports Raster Chart Support: Yes
  • Supports BNC External GPS Antenna Port: Yes
  • Supports USB Ports: Yes
  • Supports Bluetooth® Pairing: Yes
  • Supports ANT+ (Connectivity): Yes
  • Supports Garmin Wi-Fi Network (Local Connection): Yes
