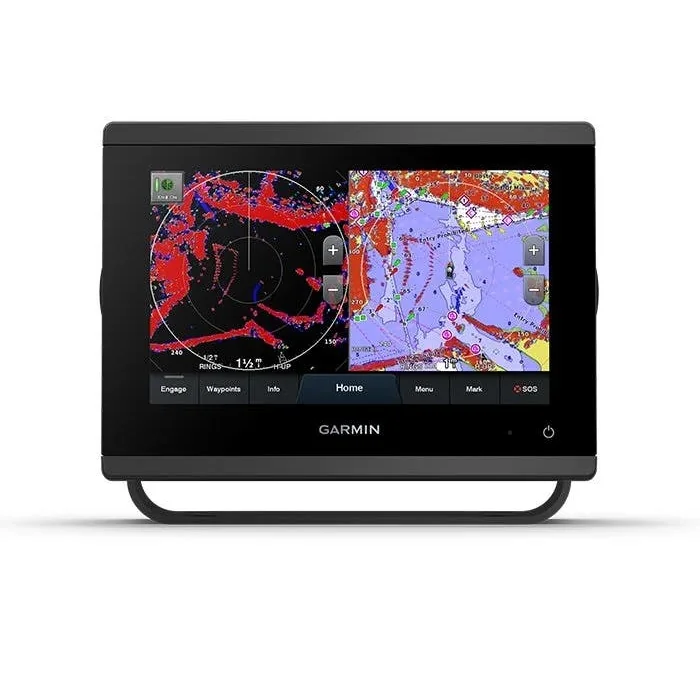

The Garmin GPSMAP 923 is a high-performance 9-inch chartplotter designed to seamlessly integrate into your Garmin marine system. It features a higher-resolution in-plane switching (IPS) display, offering 50% more pixels than previous-generation touchscreens, ensuring improved sunlight readability and a crisp, clear view from your connected helm.
- Enhanced Display: 9-inch WXGA display with a resolution of 1280 x 720 pixels, providing a sharp and clear view.
- Built-in Sonar Capabilities: Supports Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure.
- Panoptix Sonar Support: Compatible with Panoptix or Panoptix LiveScope sonar (transducer sold separately) to see all around your boat in real time.
- Garmin SailAssist Sailing Features: View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields, tide/current/time slider, wind angle, set and drift, wind speed, polars, and more.
- OneHelm Feature: Brings together all the operations and capabilities of select third-party devices, such as EmpirBus digital switching, on one screen.
- ActiveCaptain App Compatibility: Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Garmin Helm digital switching, Garmin Quickdraw Community data, and more.
- Engine Connectivity: Connects to various engines, including select Yamaha engines.
- NMEA 2000 and NMEA 0183 Networks: Connects to compatible autopilots, digital switching, weather systems, Fusion-Link audio systems, VHF radios, AIS, and more from one screen.
Technical Specifications:
- Dimensions: 9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm)
- Weight: 3.6 lbs (1.6 kg)
- Waterproof Rating: IPX7
- Display Type: WXGA
- Display Size: 7.8" x 4.4"; 9.0" diagonal (19.9 cm x 11.2 cm; 22.9 cm diagonal)
- Display Resolution: 1280 x 720 pixels
- Mounting Options: Bail, flush, or flat (Note: Garmin does not offer any hardware or accessories for a flat-mount installation; professional tools and knowledge are required.)
- Power Input: 10 to 32 Vdc
- Typical Current Draw at 12 Vdc: 1.34 A
- Maximum Current Draw at 12 Vdc: 1.78 A
- Maximum Power Usage at 10 Vdc: 22.0 W
- Built-in Receiver: 10 Hz high-sensitivity GPS, GLONASS, and Galileo
- NMEA 2000 Compatible: Yes
- NMEA 0183 Compatible: Yes
- Supports WAAS: Yes
- Accepts Data Cards: 2 microSD cards (back of unit)
- Waypoints: 5,000
- Track Points: 50,000
- Saved Tracks: 50
- Navigation Routes: 100
The GPSMAP 923 is constructed with durable materials suitable for marine environments, ensuring longevity and resistance to corrosion.
