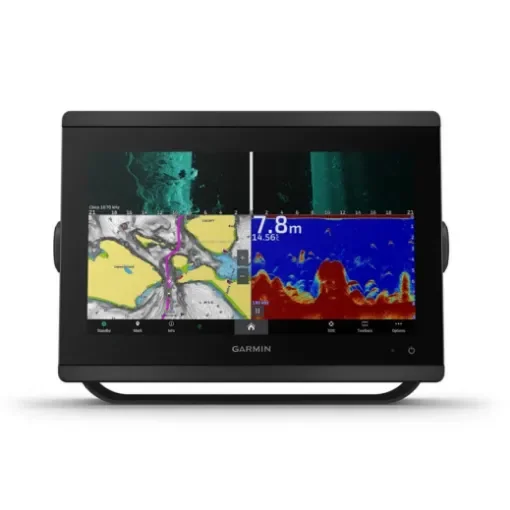

The Garmin GPSMAP 8412xsv is a high-performance 12-inch chartplotter and sounder combo, designed for serious boating enthusiasts seeking precise and safe navigation. It features a full HD In-plane Switching (IPS) touchscreen display, ensuring optimal readability even in bright sunlight.
Key Features:
- Advanced Sonar Capabilities: Built-in support for dual-channel 1 kW traditional CHIRP, CHIRP ClearVü, and CHIRP SideVü scanning sonars. It also supports Ultra High-Definition scanning sonar without the need for an additional black box. Additionally, it is compatible with the entire Panoptix all-seeing sonar line (transducers sold separately).
- Comprehensive Connectivity: Equipped with NMEA 2000 and Garmin Marine Network connectivity, allowing integration with various marine devices such as radar, autopilots, cameras, and more. The exclusive OneHelm feature enables control of third-party equipment directly from the screen.
- Sailing Features: The SailAssist feature provides critical sailing data and displays prerace guidance, including laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields, and tide/current/time slider. Gauge displays offer information at a glance, including true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs, and a data bar with customizable fields.
- Wireless Connectivity: Built-in Wi-Fi technology allows pairing with the free ActiveCaptain app for access to OneChart, smart notifications, software updates, the Helm app, Garmin Quickdraw community data, and more.
Technical Specifications:
- Display: Size: 12-inch diagonal, Resolution: 1920 x 1200 pixels, Type: Full HD IPS touchscreen with anti-glare finish
- Dimensions: 30.3 cm x 21.6 cm x 7.6 cm
- Weight: 2.7 kg
- Waterproof Rating: IPX7
- Power Consumption: 3.1 A
- Receiver: 10 Hz GPS/GLONASS/Galileo
- Mounting Options: Bail, flat, or flush (Note: Garmin does not offer hardware or accessories for flat-mount installation; professional tools and knowledge are required.)
- Connectivity: Garmin Marine Network™ Ports: 2, NMEA 2000® Port: 1, NMEA 0183 Input Ports: 1 Differential, NMEA 0183 Output Ports: 1 Differential, Video Input Ports: 1 BNC Composite, 1 HDMI, Video Output Ports: 1 HDMI, Wireless Connectivity: Yes
- Maps & Memory: Accepts Data Cards: 2 microSD™ cards, Waypoints: 5,000, Track Log: 50,000 points; 50 saved tracks, Routes: 100 (250 waypoints each)
- Sonar Features & Specifications: Dual-frequency (50/200 kHz) sonar capable: Yes, Dual-beam (77/200 kHz) sonar capable: Yes, Frequencies Supported: Traditional: 50/200, 77/200, 83/200, Single Channel CHIRP: 40-250 kHz, Dual Channel CHIRP: 40-250 kHz, SideVü/ClearVü: CHIRP 260/455/800 kHz, Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz, Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz (dependent on transducer), Transmit Power: 1 kW traditional; 1 kW CHIRP, CHIRP Sonar Technology: Yes (Built-in), ClearVü: Yes, SideVü: Yes, Maximum Depth: 5,000 ft at 1 kW (depth capacity is dependent on water bottom type and other water conditions).
