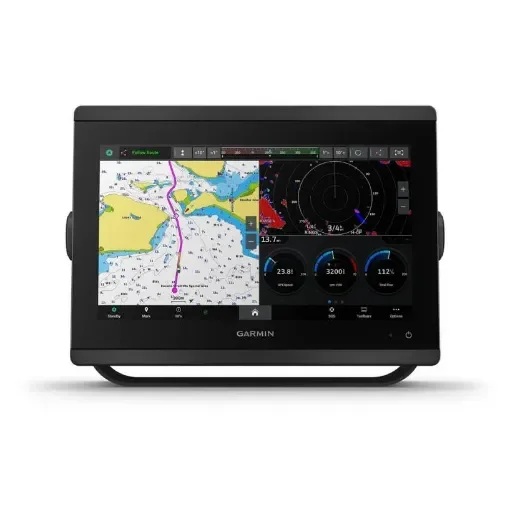

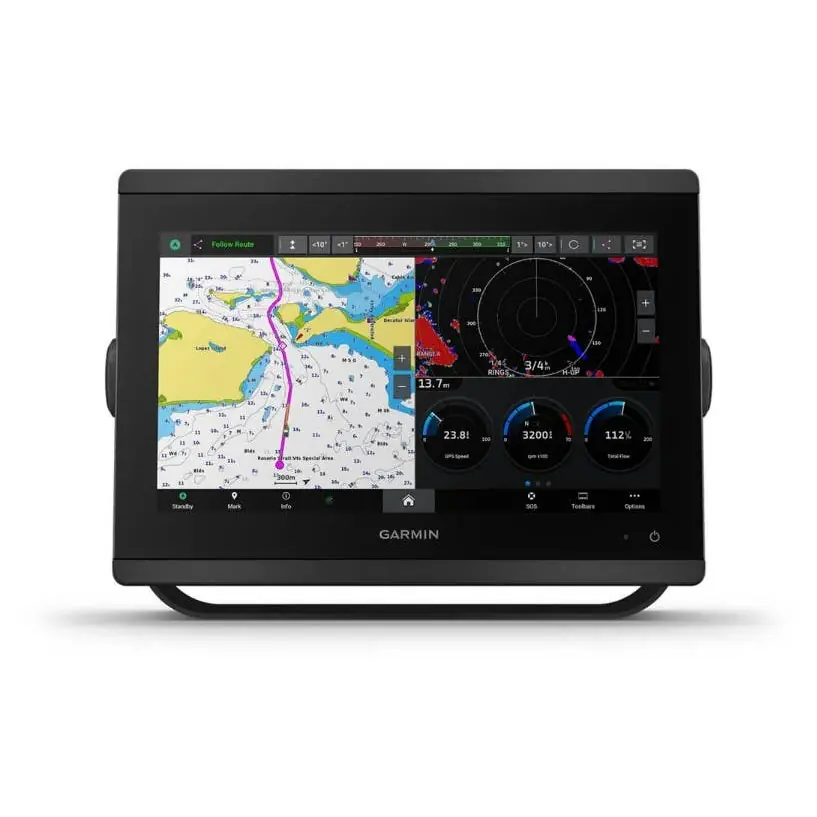

The Garmin GPSMAP 8412 is a high-performance 12-inch chartplotter designed for boating enthusiasts seeking precise and secure navigation. It features a Full HD In-plane Switching (IPS) touchscreen display, ensuring optimal readability even in bright sunlight. The device offers comprehensive connectivity options, including NMEA 2000 and Garmin Marine Network, enabling seamless integration with various onboard systems such as radar, autopilot, cameras, and more. The exclusive OneHelm feature allows control of third-party equipment directly from the screen, streamlining onboard operations. For sailing navigation, the GPSMAP 8412 includes SailAssist functions, providing critical data displays and prerace guidance to enhance racing performance. Additionally, built-in Wi-Fi connectivity pairs with the free ActiveCaptain app, granting access to features like OneChart, smart notifications, software updates, and Garmin Quickdraw community data. The device also supports inReach satellite communication, enabling users to send personalized messages using the virtual keyboard on the multifunction screen.
- Display: 12-inch Full HD IPS touchscreen with anti-glare finish
- Connectivity: NMEA 2000, Garmin Marine Network, built-in Wi-Fi, Bluetooth, and ANT+
- Integration: OneHelm feature for controlling third-party devices
- Sailing Functions: SailAssist with laylines, enhanced wind rose, and tide/current/time slider
- Communication: inReach satellite messaging capability
- App Compatibility: ActiveCaptain app for remote management and updates
Technical Specifications:
- Physical Dimensions: 11.9" x 8.5" x 3" (30.3 cm x 21.6 cm x 7.6 cm)
- Weight: 6.0 lbs (2.7 kg)
- Display Size: 10.1" x 5.7" (25.7 cm x 14.5 cm)
- Display Resolution: 1920 x 1200 pixels
- Power Input: 10-32 Vdc
- Typical Current Draw at 12 Vdc: 1.3 A
- Maximum Current Draw at 12 Vdc: 6.0 A
- Maximum Power Usage at 10 Vdc: 45W
- Receiver: 10 Hz GPS/GLONASS/Galileo
- Waterproof Rating: IPX6 and IPX7
- Mounting Options: Bail, flat, or flush (Note: Garmin does not offer hardware or accessories for flat-mount installation; professional tools and knowledge are required)
- Data Card Slots: 2 microSD cards
- Waypoints: 5,000
- Routes: 100 (250 waypoints each)
- Track Log: 50,000 points; 50 saved tracks
- Pre-loaded Maps: Worldwide Basemap
- Tide Tables: Yes
- Sonar Features: Dual-frequency (50/200 kHz) and dual-beam (77/200 kHz) sonar capable with external black box (sold separately); CHIRP sonar technology; ClearVü and SideVü with compatible black box sonar
- Connectivity Ports: NMEA 2000® Port: 1, NMEA 0183 Input Ports: 1 Differential, NMEA 0183 Output Ports: 1 Differential, Video Input Ports: 1 BNC Composite, 1 HDMI (HDCP compliant), Video Output Ports: 1 HDMI, Garmin Marine Network™ Ports: 2, USB Ports: Not specified, Bluetooth® Pairing: Yes, ANT+ (Connectivity): Yes, Garmin Wi-Fi Network (Local Connection): Yes
Compatibility Information:
- NMEA 2000 and NMEA 0183: Compatible with autopilots, digital switching, weather systems, FUSION-Link audio systems, VHF radios, AIS, and more
- OneHelm Feature: Integrates third-party devices such as EmpirBus digital switches
- ActiveCaptain App: Compatible for remote management and updates
- inReach Satellite Communication: Supports sending personalized messages using the virtual keyboard on the multifunction screen
