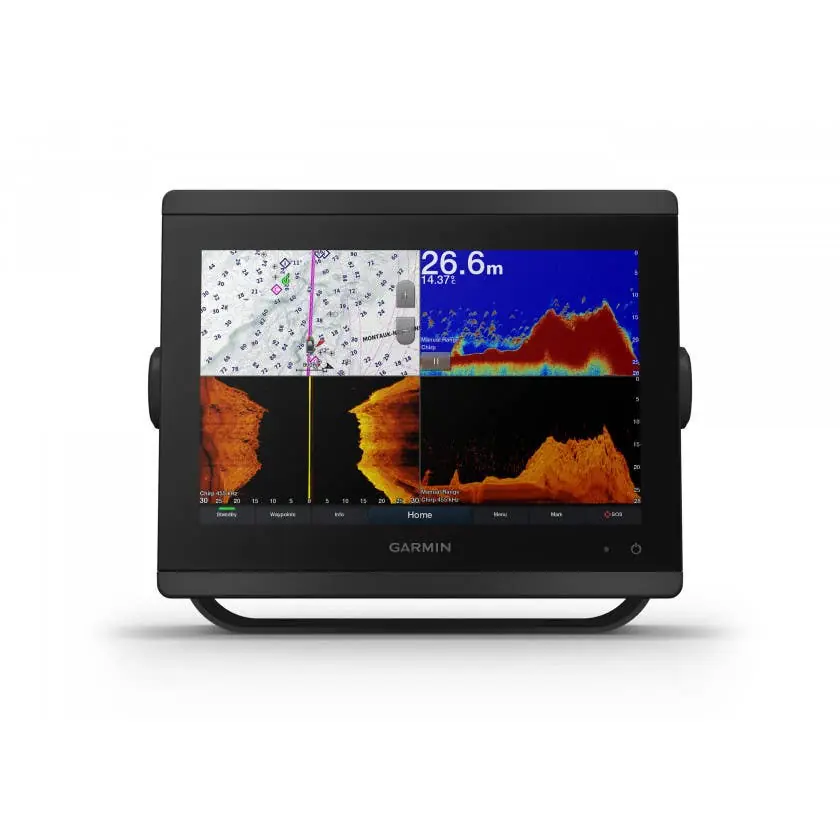

The Garmin GPSMAP 8410xsv is a high-performance 10-inch chartplotter and sounder combo, engineered for boating enthusiasts seeking precise navigation and comprehensive sonar capabilities. Its full HD in-plane switching (IPS) touchscreen ensures optimal readability, even under direct sunlight.
- Advanced Sonar Integration: Built-in support for dual-channel 1 kW traditional CHIRP sonar, CHIRP ClearVü, and CHIRP SideVü scanning sonars. It also supports Ultra High-Definition scanning sonar without the need for an additional black box. Compatibility with the entire Panoptix™ all-seeing sonar line is available (transducers sold separately).
- Comprehensive Connectivity: Equipped with NMEA 2000® and NMEA 0183 networks, allowing seamless integration with autopilots, digital switching, weather systems, FUSION-Link audio systems, VHF radios, AIS, and more.
- OneHelm™ Functionality: Centralizes control of third-party devices, such as EmpirBus digital switching, directly from the chartplotter screen.
- SmartMode™ Station Controls: Provides quick, one-touch access to essential information, facilitating ease during high-stress situations like docking.
- Sailing Features: Includes SailAssist™, offering critical data displays and prerace guidance to enhance sailing performance. Features such as laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields, and tide/current/time sliders are available.
- ActiveCaptain® App Integration: Built-in Wi-Fi connectivity pairs with the free ActiveCaptain app, providing access to OneChart™, smart notifications, software updates, Helm, Garmin Quickdraw™ Community data, and more.
Technical Specifications:
- Display: Size: 10.1 inches diagonal (25.7 cm), Resolution: 1920 x 1200 pixels, Type: WUXGA, IPS touchscreen with anti-glare finish
- Dimensions: 25.9 cm x 20.5 cm x 7.5 cm
- Weight: 2.4 kg
- Waterproof Rating: IPX7
- Power Consumption: 2.7 A
- Antenna: Internal or external over NMEA 2000
- Receiver: 10 Hz GPS/GLONASS/Galileo
- Mounting Options: Bail, flat, or flush (Note: Garmin does not offer hardware or accessories for flat-mount installations; professional tools and knowledge are required.)
- Connectivity: NMEA 2000® and NMEA 0183 compatible, Wireless: Wi-Fi®, Bluetooth®, ANT+®, Garmin Marine Network™ ports: 2, Video Input: 1 BNC composite; 1 HDMI (HDCP compliant), Video Output: 1 HDMI
- Maps & Memory: Accepts Data Cards: 2 microSD™ cards, Waypoints: 5,000, Track Points: 50,000, Tracks: 50 saved tracks, Navigation Routes: 100 (250 waypoints each)
- Sonar Features: Dual-frequency (50/200 kHz) and dual-beam (77/200 kHz) sonar capable, Frequencies Supported: Traditional: 50/200, 77/200, 83/200 kHz, Single Channel CHIRP: 40-250 kHz, Dual Channel CHIRP: 40-250 kHz, SideVü/ClearVü: CHIRP 260/455/800 kHz, Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz, Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz, Transmit Power: 1 kW traditional; 1 kW CHIRP, Maximum Depth: 5,000 ft at 1 kW (depth capacity is dependent on water bottom type and other water conditions)
Materials: Constructed with durable materials suitable for marine environments, ensuring longevity and resistance to corrosion.
