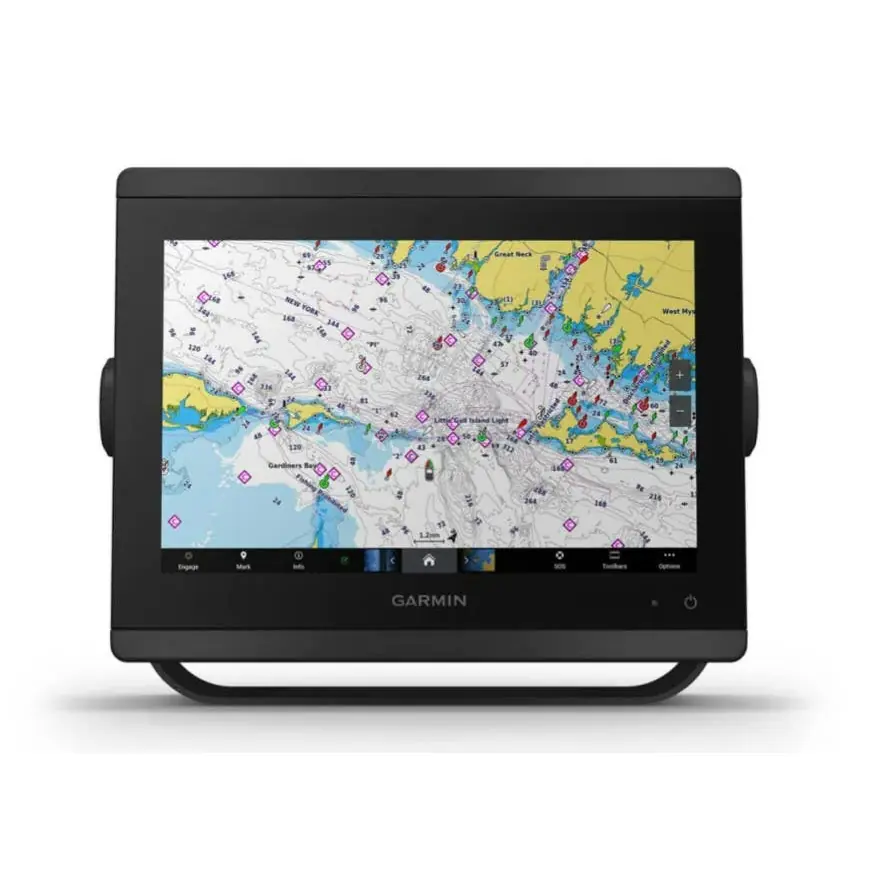

The Garmin GPSMAP 8410 is a high-performance 10-inch chartplotter designed for boating enthusiasts seeking precise and safe navigation. It features a Full HD IPS touchscreen display, ensuring optimal readability even in bright sunlight. The device offers comprehensive connectivity options, including NMEA 2000 and Garmin Marine Network, allowing integration with various onboard systems such as radar, autopilot, cameras, and more. The exclusive OneHelm feature enables control of third-party equipment directly from the screen. For sailing navigation, the GPSMAP 8410 provides specialized functions like SailAssist, displaying critical data to enhance racing performance.
- Display: 10.1-inch Full HD IPS touchscreen with anti-glare finish, offering superior clarity and sunlight readability.
- Connectivity: NMEA 2000 and Garmin Marine Network compatibility for seamless integration with various marine devices.
- OneHelm Feature: Centralized control of third-party devices, such as EmpirBus digital switches, directly from the chartplotter.
- SailAssist: Specialized sailing functions including laylines, starting line guidance, enhanced wind rose, and tide/current/time slider to optimize racing performance.
- ActiveCaptain App: Built-in Wi-Fi connectivity pairs with the free ActiveCaptain app, providing access to OneChart, smart notifications, software updates, and Garmin Quickdraw Community data.
- Integrated Bluetooth and ANT Technologies: Connects with devices such as quatix marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments, and wireless remote controls.
Technical Specifications:
- Dimensions: 10.25" x 8.0625" x 2.95" (25.9 cm x 20.5 cm x 7.5 cm)
- Weight: 5.2 lbs (2.4 kg)
- Display Resolution: 1920 x 1200 pixels
- Mounting Options: Flat and flush mounting; note that Garmin does not offer hardware or accessories for flat-mount installation; professional tools and knowledge are required.
- Power Input: 10-32 Vdc
- Typical Current Draw at 12 Vdc: 1.5 A
- Maximum Current Draw at 12 Vdc: 6.0 A
- Maximum Power Usage at 10 Vdc: 40.1 W
- Sonar Capabilities: Supports traditional sonar (dual frequency/beam), ClearVü, and SideVü with GCV™ black box (sold separately).
- Connectivity Ports: NMEA 2000® ports: 1, NMEA 0183 Input Ports: 1, NMEA 0183 Output Ports: 1, Video Input Ports: 1 (BNC composite); 1 HDMI (HDCP compliant), Video Output Ports: 1 HDMI, J1939 Ports: 1, Garmin Marine Network Ports: 2
Materials: Constructed with durable materials suitable for marine environments, ensuring longevity and resistance to corrosion.
Compatibility Information:
- Maps & Memory: Accepts 2 microSD™ cards, Waypoints: 5,000, Track Points: 50,000, Saved Tracks: 50, Navigation Routes: 100
- Sensors: Built-in 10 Hz GPS/GLONASS/Galileo receiver, Supports WAAS
- Built-in Maps: Tide tables
- Optional Map Support: BlueChart g3, BlueChart g3 Vision, LakeVü g3, LakeVü g3 Ultra, Garmin Navionics+™, Garmin Navionics Vision+™, TOPO 100K, Standard Mapping, Garmin Quickdraw Contours, Raster chart support
- Chartplotter Features: Garmin SmartMode compatible, AIS, DSC, Supports Fusion-Link™ compatible radios, GSD Black Box Sonar Support, GCV Black Box Sonar Support, ActiveCaptain® compatible, GRID (Garmin Remote Input Device) compatible, Wireless Remote Compatible, Sailing Features, Spoken audio alerts, OneHelm support
