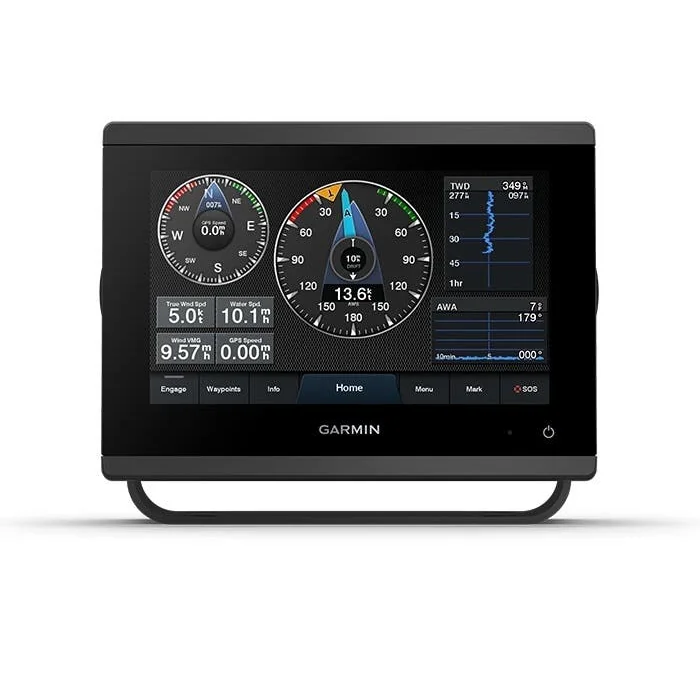

The Garmin GPSMAP 723xsv is a high-resolution 7-inch chartplotter and sonar combo designed to seamlessly integrate into your Garmin marine system. It features a sleek design with edge-to-edge glass and a slim profile, making it suitable for a wide range of dash configurations. The device offers 60% more display pixels and nearly double the processing power compared to previous-generation 7-inch GPSMAP devices, enhancing both performance and display clarity.
- Enhanced Display: 7-inch WSVGA display with a resolution of 1024 x 600 pixels, providing improved sunlight readability.
- Built-in Sonar Capabilities: Integrated Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structures.
- Traditional CHIRP Sonar: Supports 1 kW CHIRP traditional sonar capabilities for enhanced fish detection.
- Panoptix™ Sonar Support: Compatible with Panoptix and Panoptix LiveScope™ live sonar (transducer sold separately) to provide real-time, around-the-boat imaging.
- Connectivity: Built-in Wi-Fi® connectivity pairs with the free ActiveCaptain® mobile app for access to features like OneChart™, smart notifications, software updates, Garmin Helm™ digital switching, and Garmin Quickdraw™ Community data.
- Engine Integration: Easily integrates with a variety of engines, including select Yamaha engines, and supports J1939 connectivity.
- Digital Switching: Connects to compatible third-party devices with OneHelm™ digital switching for streamlined control.
- Chart Compatibility: Compatible with premium maps and charts, including optional BlueChart® G3 Vision® charts, offering the best of Garmin and Navionics® data, Auto Guidance technology, and other premium navigation features.
- Radar Compatibility: Supports Garmin radar, including the compact 4 kW GMR™ 18 HD+ dome radar, available as a bundled option.
Technical Specifications:
- Physical Dimensions: 7.6" x 5.5" x 2.9" (19.2 x 14.0 x 7.4 cm)
- Display Size: 6.1" x 3.5"; 7.0" diagonal (15.4 x 9.1 cm; 17.8 cm diagonal)
- Display Resolution: 1024 x 600 pixels
- Display Type: WSVGA display
- Weight: 2.8 lbs (1.3 kg)
- Water Rating: IPX7
- Power Consumption: Max power usage at 10 Vdc: 17.6 W; Typical current draw at 12 Vdc: 1.1 A; Max current draw at 12 Vdc: 1.5 A
- Antenna: Internal or external over NMEA 2000
- Mounting Options: Bail, flush, or flat
- Receiver: 10 Hz high-sensitivity
- Garmin Marine Network™ Ports: 1
- Preloaded Maps: Worldwide Basemap
- Accepts Data Cards: 2 microSD™ cards (back of unit)
- Waypoints: 5,000
- Track Log: 50,000 points; 50 saved tracks
- Routes: 100
- Tide Tables: Yes
- Garmin Radar Compatible: Yes
- Garmin Sonar Compatible: Yes (built-in)
- Garmin SmartMode Compatible (Customizable Monitor Presets): Yes
- Supports AIS (Tracks Target Ships Position): Yes
- Supports DSC (Displays Position Data from DSC-Capable VHF Radio): Yes
- Supports FUSION-Link™ Compatible Radios: Yes
- GSD™ Black Box Sonar Support: Yes
- GCV™ Black Box Sonar Support: Yes
- ActiveCaptain Compatible: Yes
- GRID™ (Garmin Remote Input Device) Compatible: Yes
- Wireless Remote Compatible: Yes
- Sailing Features: Yes
Sonar Features & Specifications:
- Dual-Frequency (50/200 kHz) Sonar Capable: Yes
- Dual-Beam (77/200 kHz) Sonar Capable: Yes
- Frequencies Supported: Traditional: 50/77/83/200 kHz; CHIRP (low, medium, high); ClearVü (260/455/800 kHz)
- CHIRP Sonar Technology: Yes (Built-in)
- ClearVü: Yes with CHIRP (built-in)
