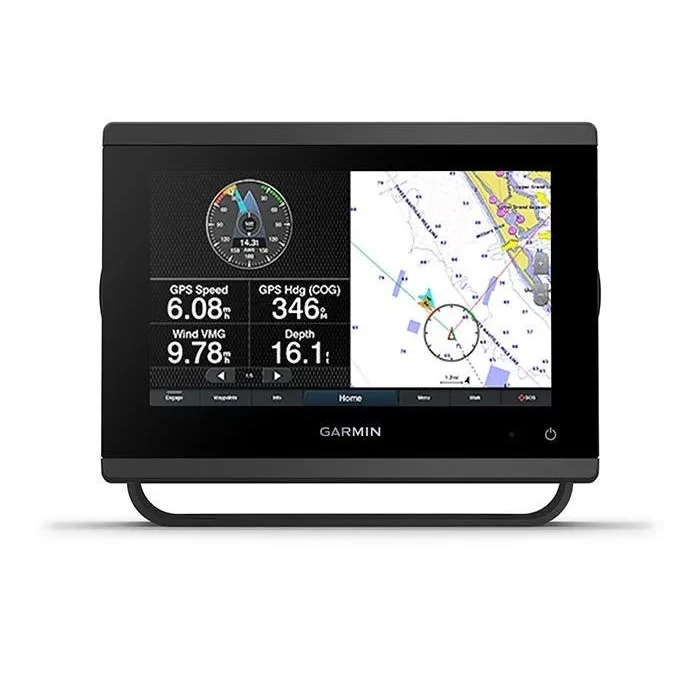

The Garmin GPSMAP 1223xsv is a 12-inch chartplotter and fishfinder combo designed to enhance your marine navigation and fishing experience. With its sleek design, powerful processing capabilities, and high-resolution display, it seamlessly integrates into your Garmin marine system.
- High-Resolution Display: Features a 12.1-inch WXGA in-plane switching (IPS) touchscreen display with a resolution of 1280 x 800 pixels, offering improved sunlight readability and wide-angle visibility.
- Built-in Sonar Capabilities: Equipped with Ultra High-Definition SideVü and ClearVü scanning sonars, providing vivid, high-contrast color palettes to help distinguish fish from structures. Supports 1 kW CHIRP traditional sonar capabilities.
- Panoptix Sonar Support: Compatible with Panoptix and Panoptix LiveScope sonar systems (transducers sold separately), allowing real-time, live sonar imaging around your boat.
- Network Connectivity: Supports Garmin Marine Network™, enabling sharing of maps, user data, radar, and IP camera video among multiple compatible Garmin devices.
- NMEA 2000 and NMEA 0183 Compatibility: Connects to compatible autopilots, digital switching, weather systems, Fusion-Link audio systems, media, VHF radios, AIS, and more from a single screen.
- ActiveCaptain App Integration: Built-in Wi-Fi connectivity pairs with the free ActiveCaptain mobile app, providing access to OneChart™, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data, and more.
- OneHelm Feature: Brings together operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.
Technical Specifications:
- Dimensions: 30.8 x 22.8 x 8.2 cm (12.1 x 8.9 x 3.2 inches)
- Weight: Approximately 3.0 kg (6.6 lbs)
- Water Rating: IPX7
- Display Size: 12.1 inches diagonal
- Display Resolution: 1280 x 800 pixels
- Mounting Options: Bail or flush mount
- Power Input: 10 to 32 VDC
- Typical Current Draw at 12 VDC: 1.7 A
- Maximum Current Draw at 12 VDC: 2.2 A
- Maximum Power Usage at 10 VDC: 26.5 W
- Transducer Ports: 12-pin (orange)
- NMEA 2000® Ports: 1
- NMEA 0183 Input Ports: 1
- NMEA 0183 Output Ports: 1
- Video Input Ports: 1 BNC
- Video Output Ports: 1 HDMI
- J1939 Ports: 1
- Garmin Marine Network™ Ports: 2
- USB Ports: Yes
- Bluetooth® Pairing: Yes
- ANT+ Connectivity: Yes
- Garmin Wi-Fi Network: Yes
Constructed with durable materials suitable for marine environments, ensuring longevity and resistance to corrosion.
