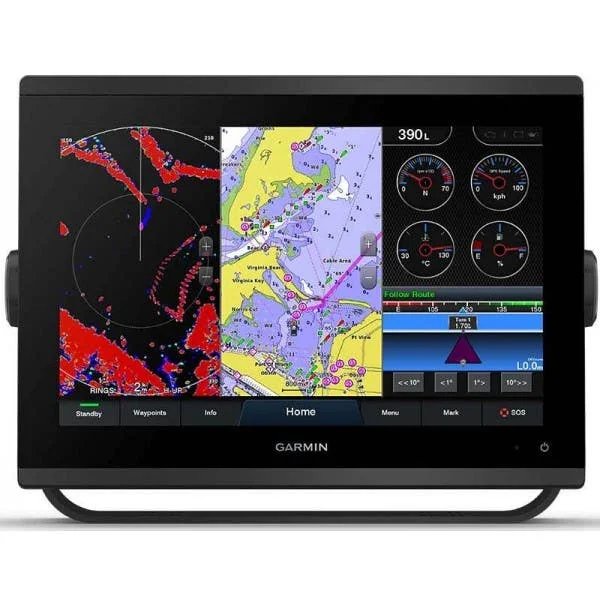

The Garmin GPSMAP 1223 is a 12-inch chartplotter designed to seamlessly integrate into your marine system, offering advanced navigation and connectivity features.
- Display: 12.1-inch WXGA display with a resolution of 1280 x 800 pixels, providing clear and detailed visuals.
- Design: Sleek, slimline design with edge-to-edge glass, allowing for easy retrofit into various dash configurations.
- Connectivity:
- Garmin Marine Network™: Share information such as maps, user data, radar, and IP camera video among multiple compatible Garmin devices.
- NMEA 2000® and NMEA 0183: Connect to compatible autopilots, digital switching, weather systems, Fusion-Link™ audio systems, VHF radios, AIS, and more.
- ActiveCaptain® App: Built-in Wi-Fi® connectivity pairs with the free ActiveCaptain app for access to OneChart™, smart notifications, software updates, Garmin Helm™, and Garmin Quickdraw™ Community data.
- OneHelm™ Feature: Integrate operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.
- Engine Connectivity: Compatible with various engine types, including select Yamaha engines.
- Sailing Features:
- Garmin SailAssist™: View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields, tide/current/time slider, wind angle, set and drift, wind speed, and more.
- Sailing Polars: Access polar tables to see key data, including optimal speeds at specific wind angles and speeds.
- Optional Charts: Supports BlueChart® g3 Vision® charts, offering premium navigation features.
- Sonar Support: Compatible with Panoptix™ PS51 transducer (sold separately) with FrontVü scanning sonar to help detect submerged obstacles in real-time within a 300-foot range.
Technical Specifications:
- Physical Dimensions: 12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm)
- Weight: 6.6 lbs (3.0 kg)
- Water Rating: IPX7
- Power Consumption:
- Maximum Power Usage at 10 Vdc: 26.5 W
- Typical Current Draw at 12 Vdc: 1.7 A
- Maximum Current Draw at 12 Vdc: 2.2 A
- Antenna: Internal or external over NMEA 2000
- Mounting Options: Bail, flush, or flat (Note: Garmin does not offer hardware or accessories for flat-mount installation; professional tools and knowledge are required.)
- Receiver: 10 Hz high-sensitivity
- Garmin Marine Network™ Ports: 2
Materials:
The GPSMAP 1223 is constructed with durable materials suitable for marine environments, ensuring longevity and resistance to corrosion.
Compatibility Information:
- Data Cards: Accepts 2 microSD™ cards
- Waypoints: 5,000
- Track Log: 50,000 points; 50 saved tracks
- Routes: 100
- Tide Tables: Yes
- Sonar Features:
- Dual-Frequency (50/200 kHz) Sonar Capable: Yes (with external black box, sold separately)
- Dual-Beam (77/200 kHz) Sonar Capable: Yes (with external black box, sold separately)
- CHIRP Sonar Technology: Yes (with external black box, sold separately)
- ClearVü: Yes (with external black box, sold separately)
- SideVü: Yes (with external black box, sold separately)
- Connections:
- NMEA 2000® Compatible: Yes
- NMEA 0183 Input Ports: 1
- NMEA 0183 Output Ports: 1
- Video Input Ports: 1 BNC
- Video Output Ports: 1 HDMI
- Wireless Connectivity: Yes
- J1939 Compatible: Yes
