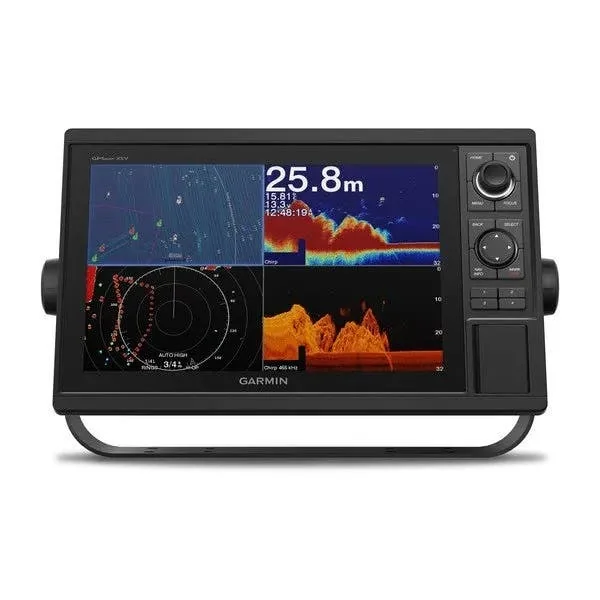

The Garmin GPSMAP 1222xsv is a 12-inch chartplotter and sonar combo designed for marine navigation and fishing enthusiasts. It offers a comprehensive suite of features to enhance your on-water experience.
- Display: 12-inch color WXGA display with a resolution of 1280 x 800 pixels, providing clear and detailed visuals.
- User Interface: Keypad interface with user-programmable keys and a multifunction control knob for intuitive operation.
- Sonar Capabilities: Built-in single-channel CHIRP sonar, CHIRP ClearVü, and CHIRP SideVü scanning sonars. Supports Panoptix™ sonar (transducers sold separately).
- GPS/GLONASS Receiver: Integrated 10 Hz high-sensitivity GPS and GLONASS receiver that updates position and heading 10 times per second for smooth tracking.
- Networking: Compatible with Garmin Marine Network and NMEA 2000®, allowing connection to various instruments and sensors. Supports NMEA 0183 for autopilots, VHF, AIS, and more.
- Wireless Connectivity: Built-in Wi-Fi for access to the ActiveCaptain app, enabling management of your marine experience from a compatible smartphone.
- ANT Connectivity: Supports ANT wireless connectivity to compatible Garmin devices such as quatix® marine watches and gWind™ Wireless 2 anemometers.
- Sailing Features: Includes SailAssist with pre-race guidance, laylines, and true and apparent wind data (sensor sold separately).
Technical Specifications:
- Physical Dimensions: 14.1" x 8.9" x 2.7" (35.8 x 22.6 x 6.9 cm)
- Weight: 5.2 lbs. (2.34 kg)
- Waterproof Rating: IPX7
- Power Input: 10 to 32 Vdc
- Typical Current Draw at 12 Vdc: 2.2 A
- Maximum Current Draw at 12 Vdc: 2.9 A
- Maximum Power Usage at 10 Vdc: 34.8 W
- Mounting Options: Bail or flush mount
- Display Size: 10.3" x 6.4" (26.2 x 16.3 cm)
- Display Resolution: 1280 x 800 pixels
- Display Type: WXGA display
- Antenna: Internal or external over NMEA 2000
- NMEA 2000® Compatible: Yes
- NMEA 0183 Compatible: Yes
- SiriusXM™ Weather & Radio Compatible: Yes
- Garmin Marine Network™ Ports: 2
- Preloaded Maps: None
- Accepts Data Cards: 2 SD™ cards (not included)
- Waypoints/Favorites/Locations: 5,000
- Routes: 100
- Track Log: 50,000 points; 50 saved tracks
- Garmin Radar Compatible: Yes
- Garmin Sonar Compatible: Yes (built-in)
- Garmin SmartMode Compatible (Customizable Monitor Presets): Yes
- Supports AIS (Tracks Target Ships Position): Yes
- Supports DSC (Displays Position Data from DSC-Capable VHF Radio): Yes
- Tide Tables: Yes
- Garmin Meteor Audio System Compatible: Yes
- Supports FUSION-Link Compatible Marine Radios: Yes
- GSD™ Black Box Sonar Support: Yes
- GCV™ Black Box Sonar Support: Yes
- BlueChart® Mobile (Planning) Compatible: Yes
- Garmin Helm Compatible: Yes
- GRID™ (Garmin Remote Input Device) Compatible: Yes
- Wireless Remote Compatible: Yes
The GPSMAP 1222xsv is constructed with durable materials suitable for marine environments, ensuring longevity and resistance to corrosion. Specific material details are not provided in the available sources.
