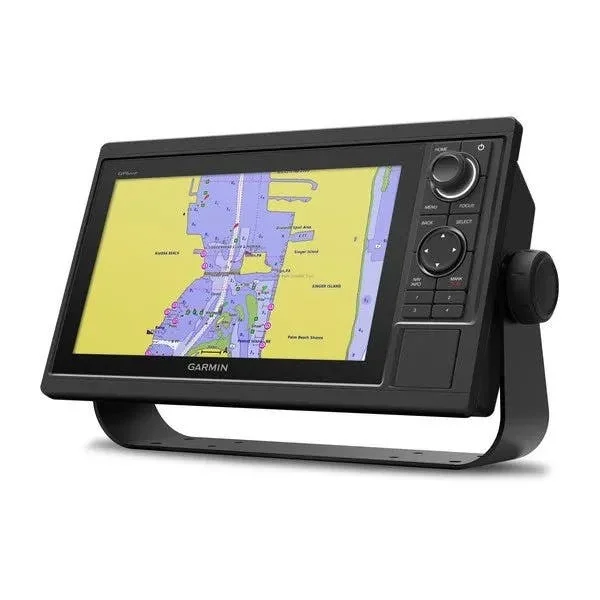

The Garmin GPSMAP 1222 is a 12-inch chartplotter designed for boaters seeking advanced navigation features in a compact, user-friendly device. It offers a bright, high-resolution display coupled with a keypad interface and multifunction control knob for seamless operation.
- Display: 12.1-inch diagonal WXGA color display with a resolution of 1280 x 800 pixels, providing clear and detailed navigation information.
- Navigation: Integrated 10 Hz GPS and GLONASS receiver updates position and heading 10 times per second, ensuring smooth tracking and accurate waypoint marking.
- Connectivity: Fully network-capable with Garmin Marine Network and NMEA 2000® support, allowing sharing of sonar data, maps, user data, and more among multiple units.
- Chart Compatibility: Supports optional BlueChart® g2 Vision® HD charts, offering advanced navigation features such as Auto Guidance.
- Sailing Features: Includes SailAssist functions like a pre-race guidance page, virtual starting line, laylines, and a race timer to enhance sailing performance.
- Wireless Connectivity: Built-in Wi-Fi enables access to the ActiveCaptain™ app for managing marine experiences from compatible smartphones.
Technical Specifications:
- Dimensions: 14.1" x 8.9" x 2.7" (35.8 x 22.6 x 6.9 cm)
- Weight: 5.2 lbs (2.34 kg)
- Mounting Options: Bail or flush mount
- Power Consumption: Typical current draw at 12 Vdc: 2.2 A; Maximum current draw at 12 Vdc: 2.9 A; Maximum power usage at 10 Vdc: 34.8 W
- Waterproof Rating: IPX7
- Waypoints: 5,000
- Routes: 100
- Track Log: 50,000 points; 50 saved tracks
- Sonar Compatibility: Supports CHIRP sonar technology, ClearVü, and SideVü with external black box (sold separately)
- Connections: 1 NMEA 2000® port, 1 NMEA 0183 input port, 1 NMEA 0183 output port, 1 BNC video input port
Constructed with durable materials suitable for marine environments, ensuring longevity and resistance to corrosion.
Compatibility Information:
- Chart Compatibility: Compatible with BlueChart® g2 HD, BlueChart® g2 Vision® HD, LakeVü g3, LakeVü g3 Ultra, Garmin Navionics+™, Garmin Navionics Vision+™, TOPO 100K, Standard Mapping, Garmin Quickdraw Contours, and raster charts.
- Network Compatibility: Supports Garmin Marine Network and NMEA 2000® for integration with various marine devices.
- Wireless Connectivity: Built-in Wi-Fi for ActiveCaptain™ app integration; ANT® wireless connectivity for compatible Garmin devices.
