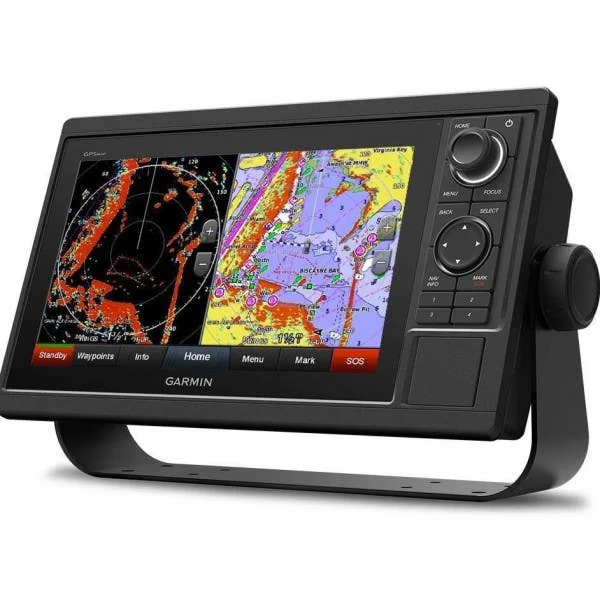

The Garmin GPSMAP 1022 is a feature-rich chartplotter designed for cruisers, sailors, and sailing racers seeking advanced navigation capabilities in a compact 10-inch display. It offers a combination of intuitive controls, robust connectivity, and specialized features to enhance your boating experience.
- 10-Inch Color Display: Equipped with a 10.1-inch diagonal WSVGA screen (1024 x 600 pixels) for clear and detailed mapping.
- Keypad Interface with Multifunction Rotary Knob: Provides quick access to functions and easy navigation through menus.
- Integrated 10 Hz GPS and GLONASS Receiver: Refreshes position and heading 10 times per second for smooth tracking.
- Built-in ANT Connectivity: Allows wireless connection to compatible Garmin devices such as quatix marine watches and gWind Wireless 2 transducers.
- Network Capable: Supports Garmin Marine Network and NMEA 2000®, enabling sharing of sonar, maps, user data, and more among multiple units.
- SailAssist Features: Includes a pre-race guidance page with a virtual starting line, laylines, and a race timer to assist sailors in competitive scenarios.
- ActiveCaptain App Integration: Built-in Wi-Fi provides access to the ActiveCaptain app, allowing management of your marine experience from your smartphone.
Technical Specifications:
- Dimensions: 316.8 x 185.2 x 82.7 mm (12.5 x 7.3 x 3.3 inches)
- Weight: 1.85 kg (4.1 lbs)
- Display Size: 10.1-inch diagonal
- Display Resolution: 1024 x 600 pixels
- Water Rating: IPX7 (withstands incidental exposure to water up to 1 meter for 30 minutes)
- Input Voltage: 10 to 32 Vdc
- Power Usage: Max. 32.4 W at 10 Vdc; typical current draw at 12 Vdc is 1.9 A
- Memory: 2 microSD card slots; supports up to 1 TB card size
- Waypoints: Up to 5,000
- Routes: Up to 100
- Track Points: Up to 50,000 points, 50 saved tracks
- Wireless Connectivity: Wi-Fi, ANT, and Bluetooth technologies operating at 2.4 GHz
Materials:
- Construction: Polycarbonate plastic and die-cast aluminum
Compatibility Information:
- Chart Compatibility: Supports BlueChart g3, BlueChart g3 Vision, LakeVü g3, LakeVü g3 Ultra, Garmin Navionics+, Garmin Navionics Vision+, TOPO 100K, Standard Mapping, Garmin Quickdraw Contours, and Raster chart support
- Networking: Compatible with Garmin Marine Network and NMEA 2000®; supports NMEA 0183 Input and Output
- Sonar Support: Supports traditional sonar (with external black box, sold separately), ClearVü, SideVü, Panoptix™, and LiveScope (with external black box, sold separately)
