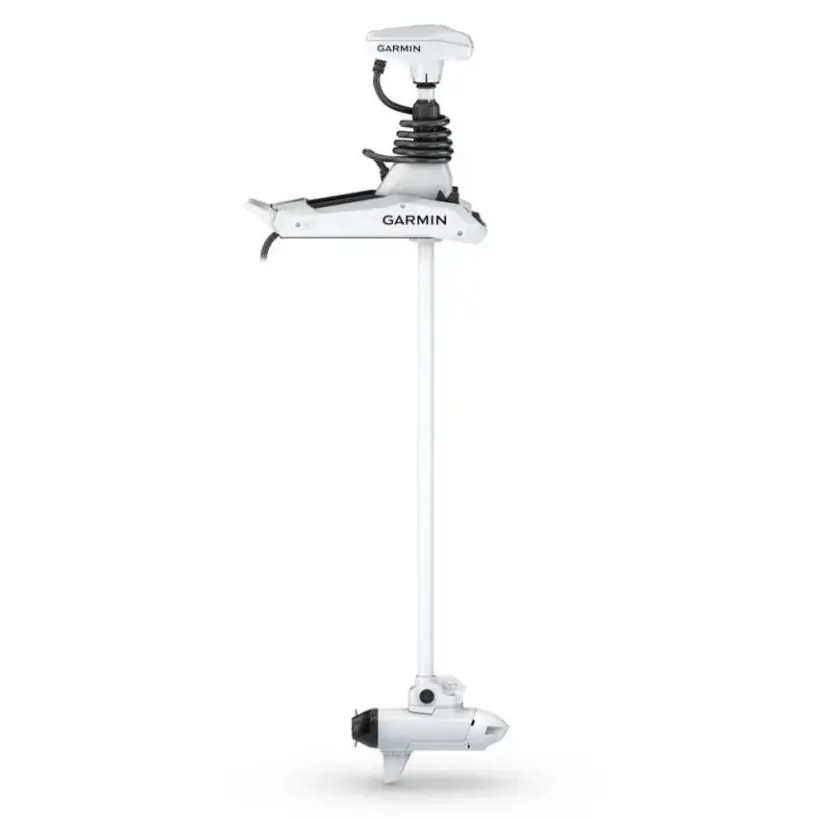

The Garmin Force Kraken Trolling Motor is engineered to deliver unparalleled power and precision for anglers seeking the ultimate fishing experience. Designed to accommodate a wide range of boat sizes, including skiffs, bay boats, center consoles, and multispecies fishing boats, the Force Kraken offers exceptional performance in both saltwater and freshwater environments.
- Unmatched Thrust: Delivers up to 100 pounds of thrust on a 36-volt system, or 80 pounds on a 24-volt system, making it the most powerful trolling motor available.
- Quiet Operation: Operates silently above and below the water, minimizing disturbances to fish.
- Advanced Boat Control: Features Garmin's precise boat positioning technology with multi-band GPS and integrated AHRS for accurate anchor lock functionality.
- Wireless Integration: Seamlessly integrates with compatible Garmin chartplotters and smartwatches, allowing anglers to control the motor remotely and create routes, patterns, and tracks.
- LiveScope Compatibility: Includes a cable management system for easy installation of LiveScope transducers, providing forward-facing sonar capabilities.
Technical Specifications
- Shaft Lengths: Available in 48-inch, 63-inch, 75-inch, and 90-inch options to suit various boat sizes.
- Weight: 63-inch white model: 24 kg (53 lb.), 63-inch black model: 24.5 kg (54 lb.), 75-inch white model: 24.5 kg (54 lb.), 75-inch black model: 25.4 kg (56 lb.), 90-inch white model: 25 kg (55 lb.), Stabilizer: 0.66 kg (1.45 lb.).
- Operating Voltage: 24 to 36 V DC.
- Continuous Input Amperage: 60 A.
- Power Usage at 36 V DC: Off: 72 mW, Full power: 2160 W.
- Water Rating: Shaft cap: IPX5, Steering motor housing: IPX7, Display panel housing: IPX7, Propeller drive motor housing: IPX8.
- Compass Safe Distance: 61 cm (2 ft.).
- Power Cable Length: 63-inch black model: 0.9 m (3 ft.), 63-inch white model: 1.2 m (4 ft.), 75-inch model: 1.2 m (4 ft.), 90-inch model: 1.2 m (4 ft.).
- Operating Temperature: -5°C to 40°C (32°F to 104°F).
- Storage Temperature: -40°C to 85°C (-40°F to 185°F).
Materials
- Mount and Motor Housing: Aluminum.
- Shaft Cap, Display Panel, and Side Panels: Plastic.
- Motor Shaft: Fiberglass.
Compatibility Information
- Chartplotters: Compatible with Garmin chartplotters for wireless integration.
- Smartwatches: Compatible with Garmin smartwatches, such as the quatix® 7 series, for remote control functionality.
- LiveScope Transducers: Compatible with LiveScope transducers when used with the Kraken LiveScope Mounting Bracket (sold separately).
