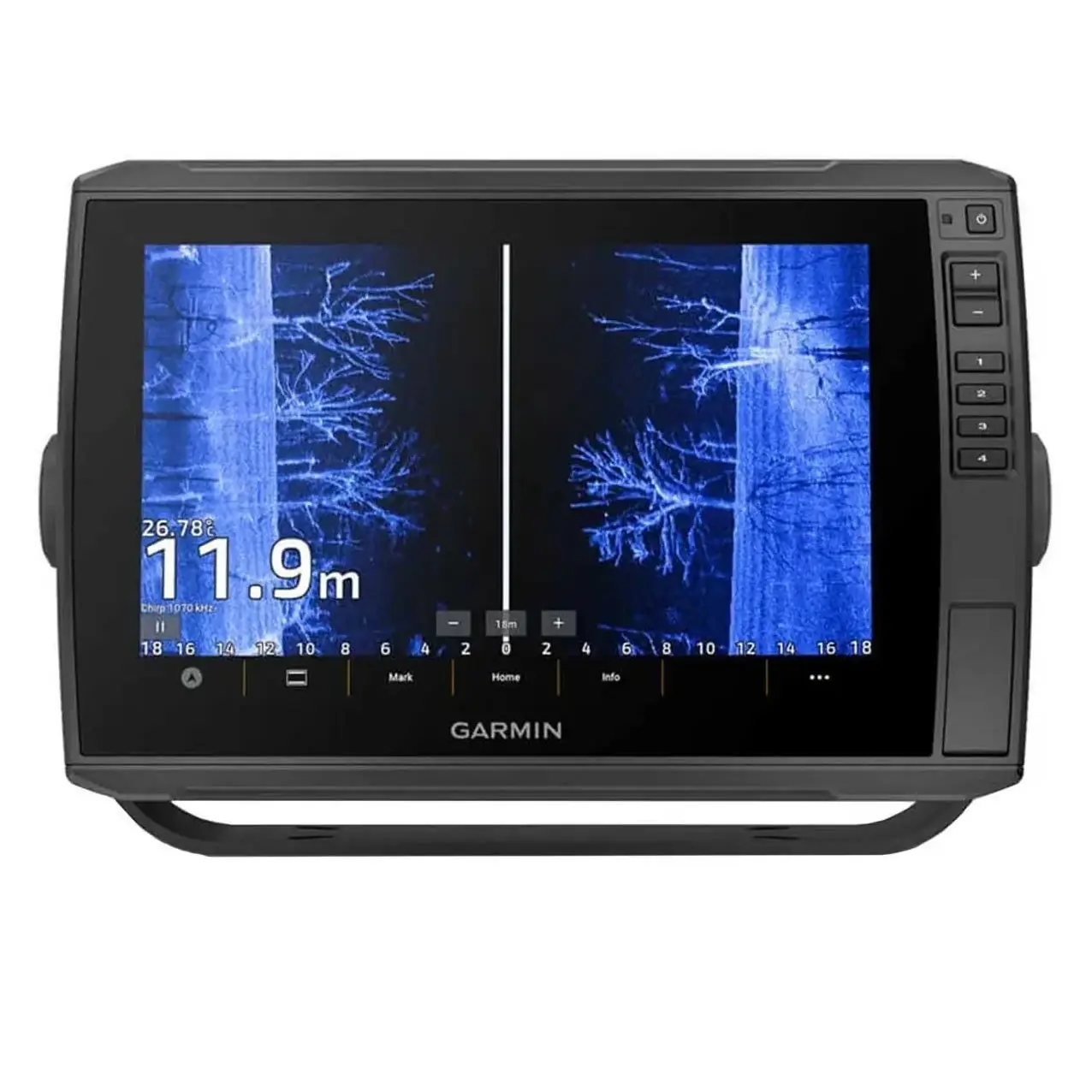

The Garmin ECHOMAP Ultra 2 102sv GPS Fishfinder Combo is a state-of-the-art navigation device designed for boating and fishing enthusiasts seeking unparalleled accuracy and clarity. This device features a 10-inch anti-glare touchscreen with a high-resolution IPS display, ensuring exceptional visibility in various lighting conditions. It is equipped with an ultra-high-definition scanning sonar, providing detailed images of underwater structures and fish. The intuitive interface allows for easy navigation between features, enhancing the user experience.
- Display: 10-inch anti-glare touchscreen with high-resolution IPS display.
- Sonar: Ultra-high-definition scanning sonar for detailed underwater imaging.
- Panoptix LiveScope™ Support: Real-time visualization of the seabed and fish.
- Mapping Compatibility: Supports Navionics+ and Navionics Vision+ mapping for comprehensive navigation.
- Transducer: Includes the GT56UHD-TM transducer, offering side view, down view, and traditional view.
- Quickdraw Contours: Create custom bathymetric maps in real-time.
- Connectivity: Two RJ45 ports for connecting multiple transducers and sharing data between devices.
- Wireless Functionality: Wi-Fi capability for sharing information between devices.
- ActiveCaptain App Integration: Connect via Wi-Fi to a compatible smartphone or tablet for software updates and community-shared maps.
Technical Specifications:
- Display Resolution: 1280 x 800 pixels.
- Display Type: WXGA, IPS.
- Dimensions (W x H x D): Device Only: 29.5 x 19.5 x 9.8 cm (11.6 x 7.7 x 3.9 inches). With Bail Mount and Sun Cover: 35.2 x 23.5 x 11.4 cm (13.8 x 9.3 x 4.5 inches).
- Weight: 1.8 kg (4.0 lbs).
- Power Input: 9 to 18 VDC.
- Typical Current Draw at 12 VDC: 2.5 A.
- Maximum Current Draw at 12 VDC: 5.0 A.
- Maximum Power Usage at 10 VDC: 36 W.
- Waterproof Rating: IPX7.
- Temperature Range: From -15°C to 55°C (5°F to 131°F).
- Compass-Safe Distance: 9 cm (3.5 inches).
- Memory Card Slots: 2 microSD™ card slots; supports up to 1 TB card size.
- Wireless Frequency: 2.4 GHz @ 16.6 dBm maximum.
- Sonar Frequencies: Traditional CHIRP: 50/77/83/200 kHz. Garmin ClearVü™ CHIRP: 260/455/800/1000/1200 kHz. Garmin SideVü™ CHIRP: 260/455/800/1000/1200 kHz.
- Sonar Transmit Power (RMS): CHIRP: 600 W. Garmin ClearVü and Garmin SideVü CHIRP: 600 W.
- Sonar Depth: Up to 701 meters (2,300 feet) at 77 kHz.
Materials:
- Device Housing: Polycarbonate plastic.
Compatibility Information:
- Mapping: Compatible with Garmin Navionics+ and Navionics Vision+ mapping.
- Transducers: Compatible with various Garmin transducers, including the GT56UHD-TM.
- ActiveCaptain App: Compatible with iOS and Android devices for software updates and community-shared maps.
- NMEA 2000® Network: Compatible with heading sensors, autopilots, Fusion-Link™ audio systems, and more.
