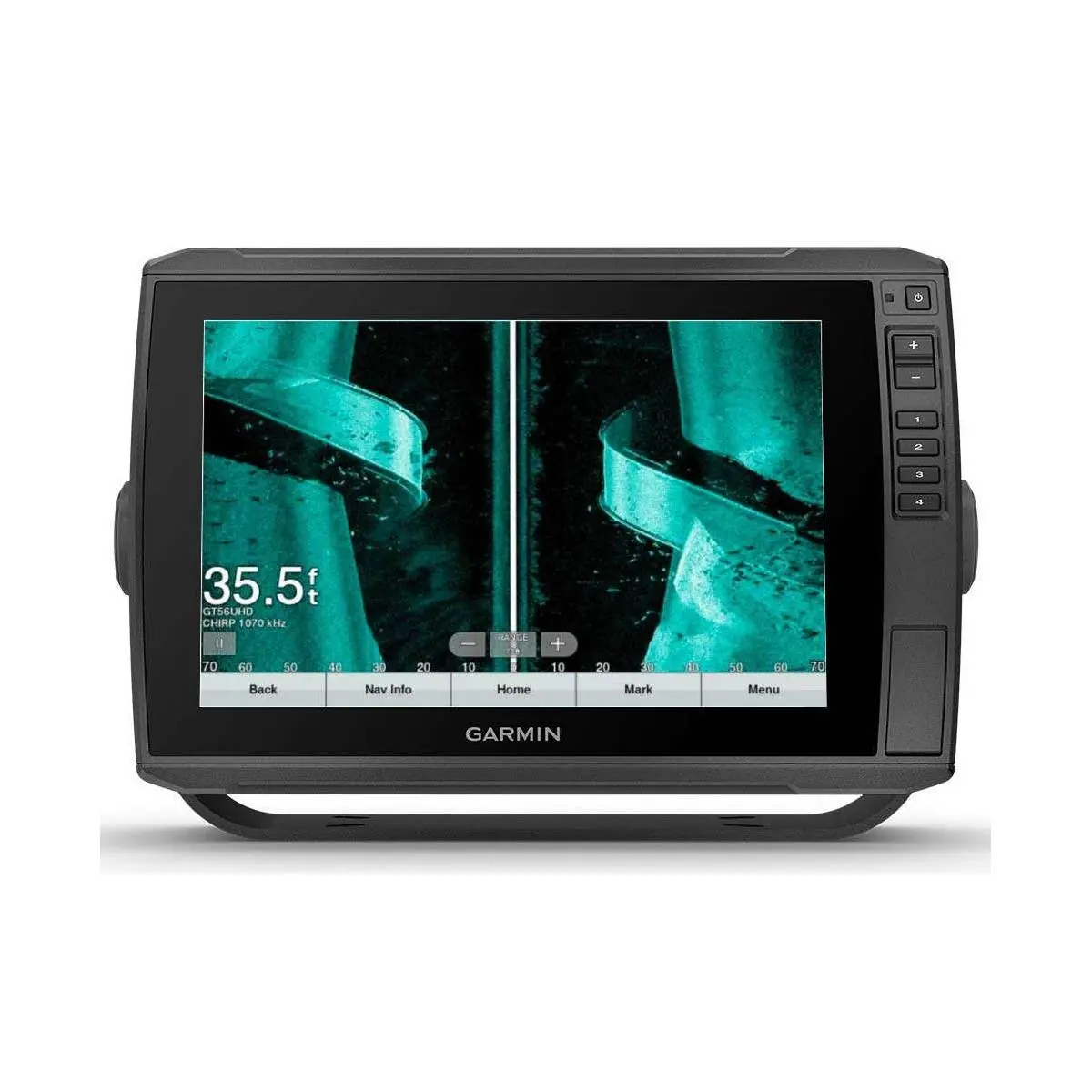

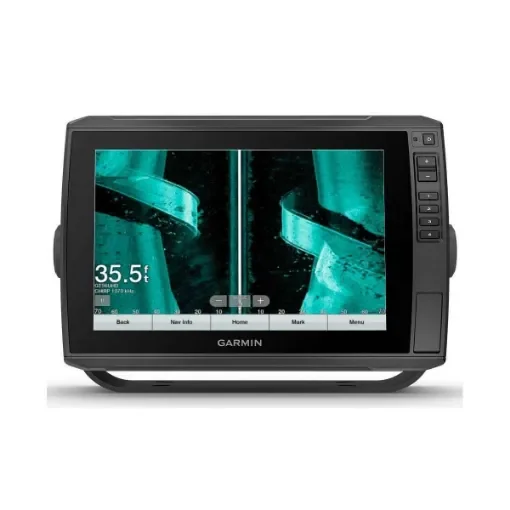

The Garmin ECHOMAP Ultra 122sv is a 12-inch touchscreen chartplotter and fishfinder combo designed to enhance your fishing experience with advanced sonar capabilities and comprehensive mapping features.
- 12-Inch Touchscreen Display: Features a high-resolution WXGA display measuring 10.3" x 6.4" (26.1 cm x 16.3 cm) with a 12.1" diagonal (30.7 cm), providing clear and detailed visuals.
- Built-In Ultra High-Definition Sonar: Equipped with Garmin CHIRP traditional sonar, ClearVü, and SideVü scanning sonars, delivering photo-like images of underwater structures and fish.
- GT56UHD-TM Transducer: Included transducer offers three scanning sonar frequencies and a 20% greater range for UHD SideVü sonar, ensuring optimal performance at various depths.
- Vivid Color Palettes: High-contrast color palettes enhance target and structure identification.
- Advanced Mapping Options: Supports optional Garmin Navionics+ integrated mapping and Garmin Navionics Vision+ premium mapping with high-resolution relief shading, satellite imagery, and more.
- ActiveCaptain® App Compatibility: Built-in Wi-Fi connectivity pairs with the free ActiveCaptain app, allowing access to OneChart™, smart notifications, software updates, and Garmin Quickdraw™ Community data.
- Network Sharing: Share sonar, waypoints, and routes with other compatible ECHOMAP Ultra units on your boat.
- NMEA 2000® Network Compatibility: Connects to autopilots, digital switching, weather, Fusion-Link™ audio systems, VHF, AIS, engine data, and more.
- Quick-Disconnect Bail Mount: Allows for easy installation and removal of the unit.
Technical Specifications:
- Physical Dimensions: 13.4" x 9.0" x 3.9" (341 x 229 x 98 mm)
- Display Resolution: 1280 x 800 pixels
- Weight: 5.5 lbs (2.5 kg)
- Water Rating: IPX7
- Power Consumption: 26 W
- Antenna: Internal or external over NMEA 2000
- Mounting Options: Bail or flush
- Receiver: 10 Hz
- Garmin Marine Network™ Ports: 2 (large connector)
- Accepts Data Cards: 2 microSD™ cards
- Waypoints: 5,000
- Track Log: 50,000 points; 50 saved tracks
- Routes: 100
- Dual-Frequency (50/200 kHz) Sonar Capable: Yes
- Dual-Beam (77/200 kHz) Sonar Capable: Yes
- Frequencies Supported: CHIRP High-Wide: 150-240 kHz, Ultra High-Definition ClearVü: 800 kHz (760-880 kHz), CHIRP ClearVü: 455 kHz (425-845 kHz), Ultra High-Definition SideVü: 1,200 kHz (1060-1170 kHz)
- Maximum Depth: 2,300 ft @ 77 kHz, freshwater; 1,100 ft @ 77 kHz, saltwater
- Bottom Lock (Shows Return from the Bottom Up): Yes
- Water Temperature Log and Graph: Yes
- Sonar Recording: Yes
- Sonar History Rewind: Yes
- NMEA 2000® Compatible: Yes
- NMEA 0183 Input Ports: 1
- NMEA 0183 Output Ports: 1
- Wireless Connectivity: Yes
Materials: High-quality marine-grade materials designed for durability in harsh marine environments.
Compatibility Information:
- Transducer Compatibility: Supports a variety of Garmin transducers, including Panoptix™ all-seeing sonar transducers and the Panoptix LiveScope™ LVS12 scanning sonar system (sold separately).
- Mapping Compatibility: Compatible with optional Garmin Navionics+ integrated mapping and Garmin Navionics Vision+ premium mapping.
- App Compatibility: Compatible with the ActiveCaptain® app for mobile device integration.
