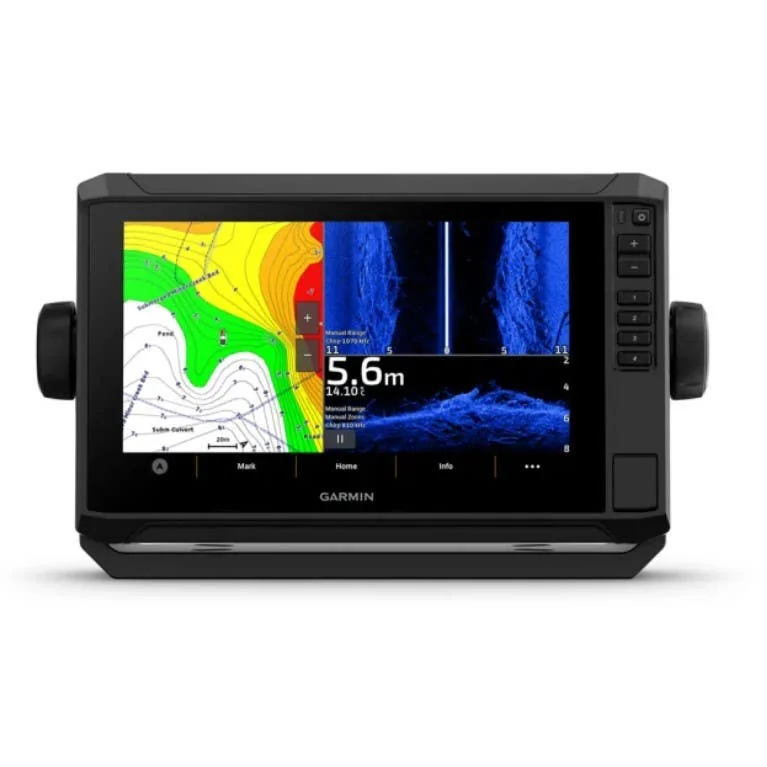

The Garmin ECHOMAP UHD2 92sv is a 9-inch chartplotter designed for marine navigation and fishing enthusiasts. It features a bright, sunlight-readable touchscreen display with improved detail, clarity, and viewing angle. The device includes built-in worldwide basemaps and supports Garmin Navionics+™ and Garmin Navionics Vision+™ cartography, BlueChart® g3 coastal charts, and LakeVü™ g3 inland maps. It also offers built-in Wi-Fi® connectivity, allowing wireless sharing of sonar, waypoints, and routes with another ECHOMAP UHD2 chartplotter. The device is compatible with the GT56-TM transducer, providing traditional, ClearVü™, and SideVü™ scanning sonars. Additionally, it supports LiveScope™ sonar systems and NMEA 2000® networks for connecting compatible autopilots, digital switching, music, and more.
- Display Size: 9 inches diagonal
- Display Resolution: 1024 x 600 pixels
- Display Type: WSVGA
- Weight: 1.3 kg (2.9 lb.)
- Dimensions (W x H x D): Device Only: 264 x 166 x 80 mm; In Bail Mount with Sun Cover: 303 x 182 x 99 mm
- Water Rating: IEC 60529 IPX7
- Temperature Range: From -20° to 55°C (from -4° to 131°F)
- Input Voltage: From 9 to 18 Vdc
- Fuse: 3 A, fast-acting (included)
- Memory Card: 1 microSD™ card slot; 1 TB max. card size
- Wireless Frequency: 2.4 GHz @ 18.7 dBm maximum
- Sonar Frequencies: Traditional L, M, H CHIRP: 50/77/83/200 kHz; Garmin ClearVü™ CHIRP: 260/455/800/1000/1200 kHz; Garmin SideVü™ CHIRP: 260/455/800/1000/1200 kHz
- Sonar Transmit Power (RMS): CHIRP: 500 W; Garmin ClearVü and Garmin SideVü CHIRP: 500 W
- Sonar Depth: 701 m (2,300 ft.) at 77 kHz
- Max. Power Draw: 20.7 W
- Typical Current Draw at 12 Vdc (RMS): 1.72 A
- Max. Current Draw at 12 Vdc (Peak): 3.5 A
- Compass-Safe Distance: 22.5 cm (9 in.)
The device is constructed with polycarbonate plastic, ensuring durability and resistance to marine environments.
