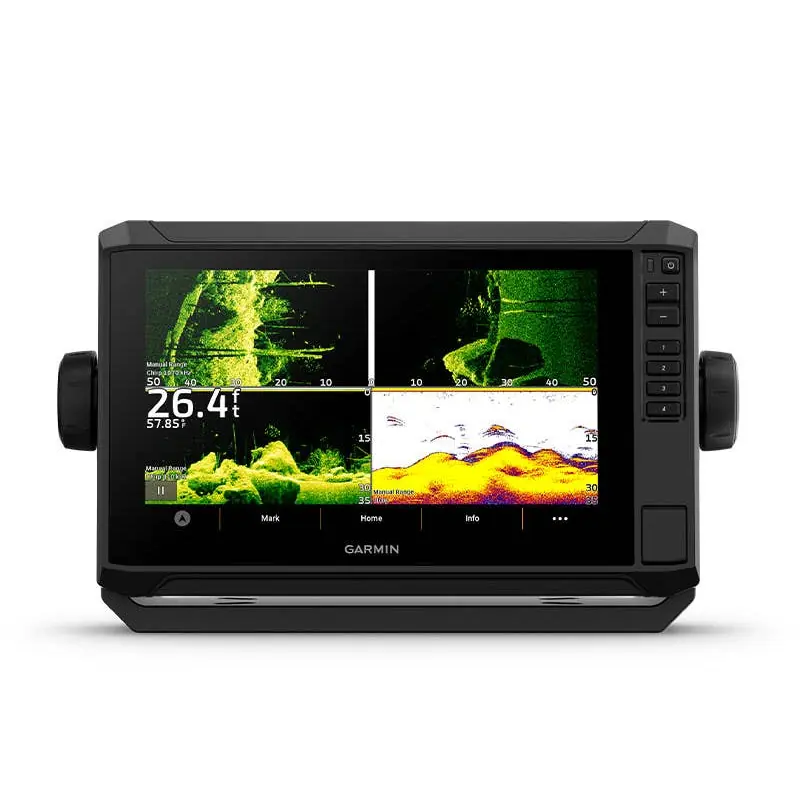

The Garmin ECHOMAP UHD2 62sv Combo Sonar GPS is a versatile chartplotter and fishfinder designed to enhance your boating and fishing experience. It features a 6-inch touchscreen display with keypad assistance, providing clear and intuitive navigation. The device offers multiple sonar capabilities, including traditional Garmin CHIRP, ClearVü™, and SideVü™, delivering detailed underwater imagery. With Vivid color palettes, it enhances target separation and clarity. The ECHOMAP UHD2 supports wireless sharing of waypoints and routes with other compatible devices. It is compatible with Garmin Navionics+™ mapping for comprehensive navigation.
- Display: 6-inch touchscreen with keypad assistance
- Sonar Capabilities:
- Traditional Garmin CHIRP
- ClearVü™
- SideVü™
- Color Palettes: Vivid for enhanced target separation
- Wireless Sharing: Share waypoints and routes with compatible devices
- Mapping Compatibility: Garmin Navionics+™
Technical Specifications:
- Material: Polycarbonate plastic
- Water Rating: IEC 60529 IPX7
- Temperature Range: -20°C to 55°C (-4°F to 131°F)
- Input Voltage: 9 to 18 Vdc
- Fuse: 3 A, fast-acting (included)
- Memory Card: 1 microSD™ card slot; up to 1 TB
- Wireless Frequency: 2.4 GHz @ 18.7 dBm maximum
- Sonar Frequencies:
- Traditional CHIRP: 50/77/83/200 kHz
- Garmin ClearVü™ CHIRP: 260/455/800/1000/1200 kHz
- Garmin SideVü™ CHIRP: 260/455/800/1000/1200 kHz
- Sonar Transmit Power (RMS):
- CHIRP: 500 W
- Garmin ClearVü™ and Garmin SideVü™ CHIRP: 500 W
- Sonar Depth: 701 m (2,300 ft.) at 77 kHz
Dimensions and Weight:
- Device and Cradle Only:
- Width: 206 mm (8 1/8 inches)
- Height: 131 mm (5 3/16 inches)
- Depth: 67 mm (2 5/8 inches)
- In Bail Mount with Sun Cover:
- Width: 244 mm (9 5/8 inches)
- Height: 155 mm (6 1/8 inches)
- Depth: 99 mm (3 7/8 inches)
- Display Size:
- Width: 138 mm (5 7/16 inches)
- Height: 78 mm (3 1/16 inches)
- Diagonal: 157 mm (6 inches)
- Weight: 0.8 kg (1.8 lb.)
Compatibility Information:
- Mapping: Compatible with Garmin Navionics+™
- Wireless Sharing: Share waypoints and routes with other compatible ECHOMAP UHD2 devices
