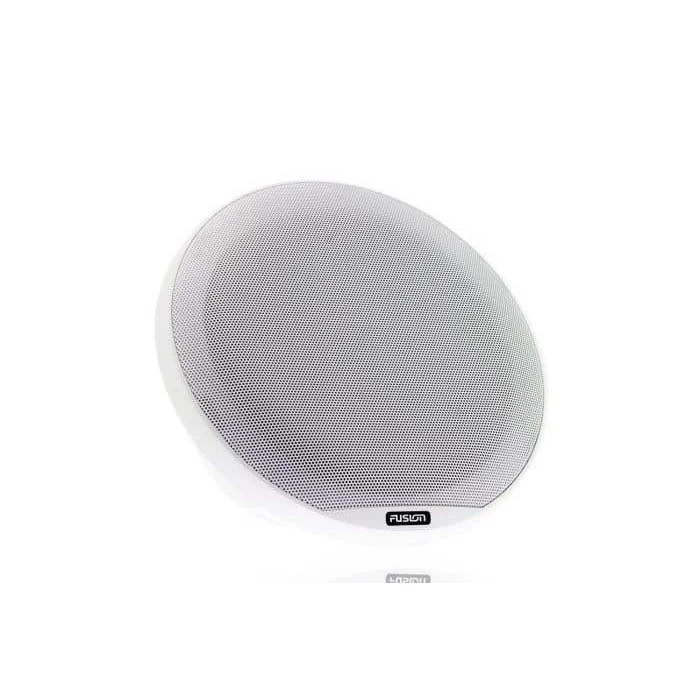

The Fusion Signature Series 3i 10" Classic Subwoofer in White is engineered to deliver premium low-frequency audio performance in marine environments. Its design combines exceptional mechanical engineering with advanced acoustic technology to enhance your on-water audio experience.
- Premium Sound Quality: Delivers crystal-clear, high-fidelity low-frequency acoustics, enhancing the overall audio experience on your vessel.
- Marinized Design: Features an IP65 water and dust rating, ensuring durability and reliable performance in harsh marine conditions.
- Enhanced Connectors: Equipped with new waterproof connectors for easier installation and superior protection against the marine environment.
- Classic Aesthetic: The perforated metal grille with a white finish offers a stylish and discreet design suitable for both indoor and outdoor installations.
- True-Marine™ Design: Built to Fusion's True-Marine™ standards, ensuring longevity and consistent performance season after season.
Technical Specifications
- Peak Power: 600 Watts
- RMS Power: 300 Watts
- Nominal Impedance: 4 ohms
- Overall Dimensions: 10.83" (275 mm) diameter x 6.38" (162 mm) depth
- Mounting Depth: 5.24" (133 mm)
- Sensitivity: 86 dB
- Frequency Response: 30 Hz – 2 kHz
- Voice Coil Diameter: 2"
- Cone Material: Polypropylene cone with rubber surround
- Operating Temperature Range: 32°F to 122°F (0°C to 50°C)
- Compass-Safe Distance: 205" (520 cm)
Materials
- Cone: High-strength polypropylene with rubber surround for enhanced bass reproduction and durability.
- Grille: Perforated metal with a white finish, providing both protection and aesthetic appeal.
Dimensions
- Overall Dimensions: 10.83" (275 mm) diameter x 6.38" (162 mm) depth
- Mounting Depth: 5.24" (133 mm)
- Cutout Size: 8.78" (223 mm)
Compatibility Information
Designed to integrate seamlessly with Fusion stereo systems and amplifiers, the Signature Series 3i subwoofer ensures optimal performance when paired with Fusion's audio components. It is also suitable for use with other marine audio systems, provided they meet the subwoofer's power and impedance requirements.
