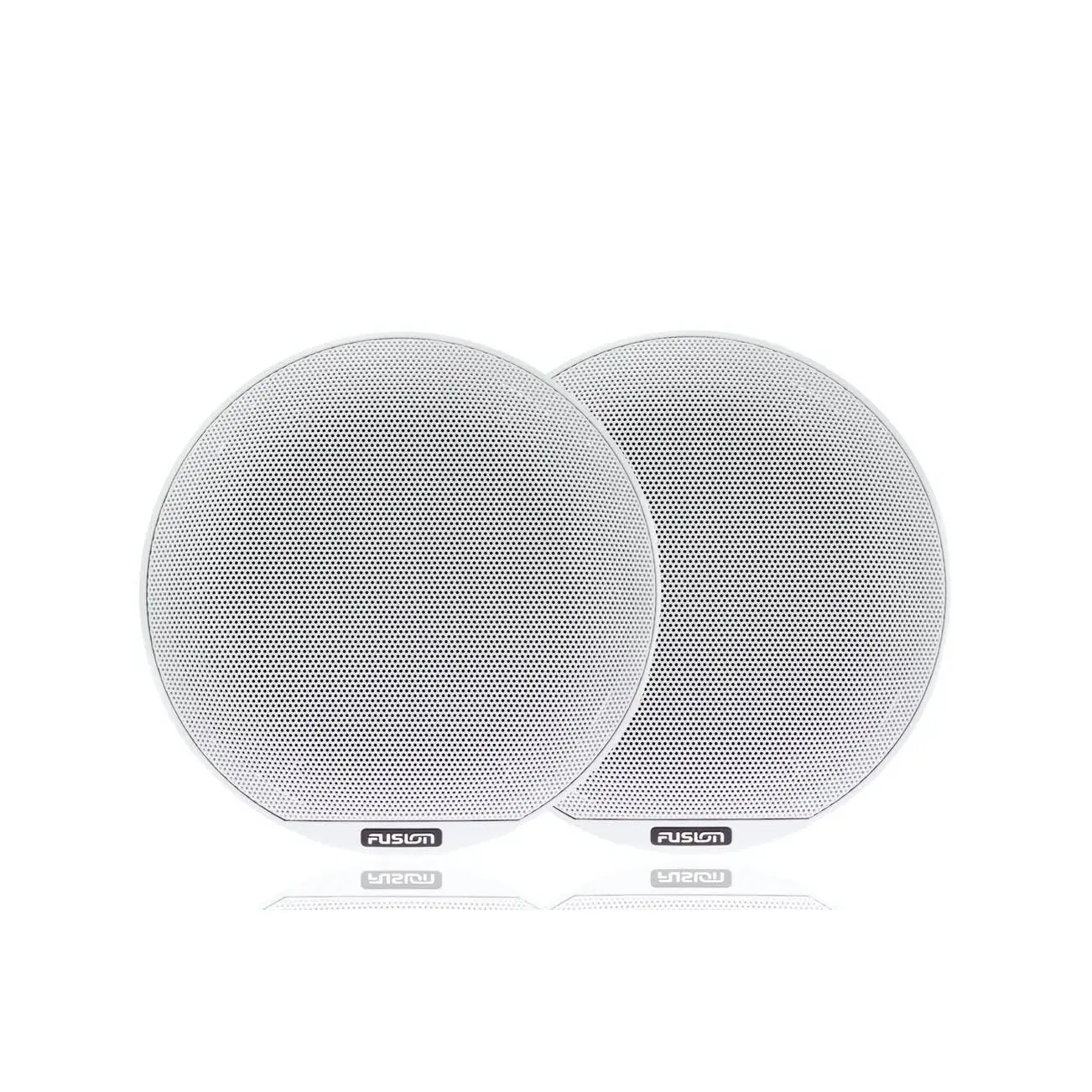

Fusion's Signature Series 3 Classic Round Marine Speakers are engineered to deliver exceptional audio performance in the harshest marine environments. These speakers incorporate advanced materials and technologies to ensure durability and superior sound quality on the water.
- CURV Cone Technology: Utilizes a woven fiber composite that is heat-pressed to form a lighter and stronger cone, enhancing sound definition and efficiency while providing increased protection against marine conditions.
- Silk Dome Tweeter: Delivers a smooth upper frequency response with increased efficiency, ensuring crystal-clear music reproduction.
- Fully Sealed Crossover Components: Offers full protection from the harsh marine environment, delivering an improved frequency response at the crossover point for a detailed audio spectrum.
- Perforated Metal Grille: Features a discreet, refined design suitable for both indoor and outdoor installation, with an elegant Classic White finish that complements the aesthetics of your vessel.
- IP65 Water and Dust Resistance Rating: Tested to meet international standards for pressure and waterproofing, ensuring the speakers are designed and built to the highest industry standards for quality and durability.
Technical Specifications
- Speaker Sizes and Power Ratings:
- 6.5" Speaker:
- Peak Power: 230 Watts
- RMS Power: 75 Watts
- Sensitivity: 90 dB
- Frequency Response: 70 Hz – 22 kHz
- Nominal Impedance: 4 Ohms
- Recommended Amplifier Power: 30 – 90 W/Ch
- Mounting Depth: 3.11" (79 mm)
- Weight: 3 lbs (1.35 kg) per speaker
- Dimensions: 7.87" x 4.06" (200 x 103 mm)
- 7.7" Speaker:
- Peak Power: 280 Watts
- RMS Power: 100 Watts
- Sensitivity: 91 dB
- Frequency Response: 60 Hz – 22 kHz
- Nominal Impedance: 4 Ohms
- Recommended Amplifier Power: 25 – 120 W/Ch
- Mounting Depth: 3.39" (86 mm)
- Weight: 4 lbs (1.8 kg) per speaker
- Dimensions: 8.66" x 4.31" (220 x 109.5 mm)
- 8.8" Speaker:
- Peak Power: 330 Watts
- RMS Power: 130 Watts
- Sensitivity: 91 dB
- Frequency Response: 50 Hz – 20 kHz
- Nominal Impedance: 4 Ohms
- Recommended Amplifier Power: 25 – 140 W/Ch
- Mounting Depth: 3.39" (86 mm)
- Weight: 5.8 lbs (2.62 kg) per speaker
- Dimensions: 9.75" x 5.16" (247 x 131 mm)
- Cone Material: CURV® Cone Technology with rubber surround
- Tweeter Type: Silk dome
- Compass-Safe Distance: 6.5" Speaker: 122" (310 cm); 7.7" Speaker: 141" (358 cm); 8.8" Speaker: 162" (412 cm)
- Speaker Connection: Flying lead with water-resistant 2-way connector, 5.9" (150 mm)
- LED Lighting: Available in Sports models with CRGBW LED lighting
- Operating Temperature Range: 32–122 degrees F (0–50 degrees C)
- Warranty: 3 years
