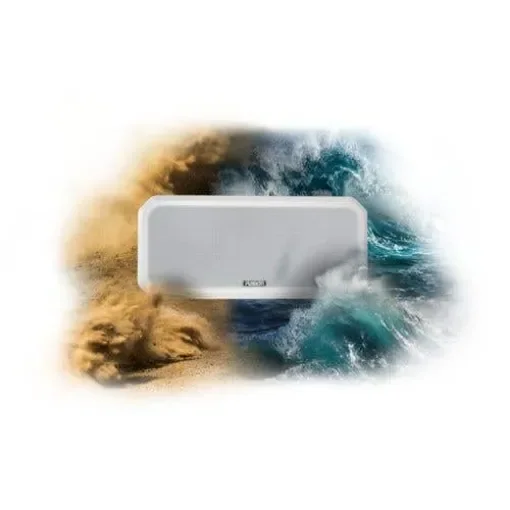

The Fusion RV-FS402W Sound-Panel is a revolutionary speaker system designed for boating enthusiasts and various vessels, addressing the challenge of delivering professional sound quality within shallow mounting depths. This all-in-one solution integrates multiple components to provide high-quality audio reproduction in diverse installation scenarios.
- Integrated Speaker System: Combines two 4" custom speaker drivers, two soft dome tweeters, and a bass radiator, all perfectly tuned to the enclosure for optimal sound performance.
- High Power Output: Delivers up to 200 Watts of powerful audio, with a maximum power handling of 100 Watts per speaker connection and an RMS power of 25 Watts per speaker connection.
- IP65 Weather Resistance: Rated IP65 for protection against dust, salt fog, and water ingress, making it suitable for both indoor and outdoor installations on boats.
- Versatile Mounting Options: Offers multiple mounting configurations, including flush, semi-recessed, and surface mount, with optional spacers (16mm, 22mm, and 41mm) to accommodate various mounting depths.
- Easy Installation: Designed for straightforward installation with minimal cutting, requiring only a single cut-out for flush mounting.
- Durable Construction: Includes stainless steel mounting hardware to resist corrosion and maintain appearance over time.
Technical Specifications:
- Tweeter Type: Soft dome
- Maximum Power: 100 Watts per speaker connection
- RMS Power: 25 Watts per speaker connection
- Efficiency (1W/1m): 87 dB
- Impedance: 4 Ohms
- Frequency Response: 67Hz - 20kHz
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Materials:
- Enclosure: Sealed design to protect drivers and components from environmental damage
- Mounting Hardware: Stainless steel to prevent corrosion and staining
Dimensions:
- Overall Dimensions: 431 mm x 171 mm x 41 mm (16.97" x 6.73" x 1.61")
- Mounting Depth: 41 mm (1.61")
Compatibility Information:
The Fusion RV-FS402W Sound-Panel is compatible with various Fusion marine stereos and audio systems, including:
- Fusion Apollo RA670
- Fusion Apollo RA770
- Fusion Apollo WB670
- Fusion BB100 Black Box
- Fusion EL Series Marine Speakers
- Fusion FM Series Marine Speakers
- Fusion FM Series Marine Subwoofers
- Fusion MS-RA60 Marine Stereo
- Fusion RA210 Marine Stereo
- Fusion RA70 Series Marine Stereos
