Key Features:
- Wireless Control: Adjust the LED illumination of Fusion RGB speakers and subwoofers from up to 10 meters away using the portable wireless remote control.
- Static and Dynamic Color Options: Select from a wide range of colors in both static and dynamic modes to complement your music and enhance your on-board audio entertainment experience.
- Intuitive Touch Controls: Easily adjust the lighting settings with touch controls, including an intuitive color selection wheel.
- Multiple Lighting Zones: Control up to three separate lighting zones with a single remote by adding additional control modules.
Technical Specifications:
- Input Voltage: 10.8 to 16 V DC
- Output Current: 2A maximum per color terminal
- Maximum Capacity: Supports up to 8 RGB LED speakers (4 pairs)
- Remote Control Frequency: 2.4 GHz
- Operating Range: Up to 10 meters (approximately 32 feet)
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -4°F to 158°F
- Remote Control Battery Type: 2 AAA batteries (not included)
- Fuse: 7.5A/ATO (included)
- IP Rating: None
Materials:
The control module and remote control are constructed with durable materials suitable for marine environments. Specific material details are not provided in the available sources.
Dimensions:
- Control Module: Approximately 8.3 cm (L) x 4.4 cm (W) x 2.2 cm (H)
- Remote Control: Approximately 15 cm (L) x 4 cm (W)
Compatibility Information:
The MS-RGBRC is compatible with Fusion's RGB LED marine speakers and subwoofers, including the EL Series and XS Series. It can control up to four pairs of Fusion RGB LED marine speakers or subwoofers.
Additional Details:

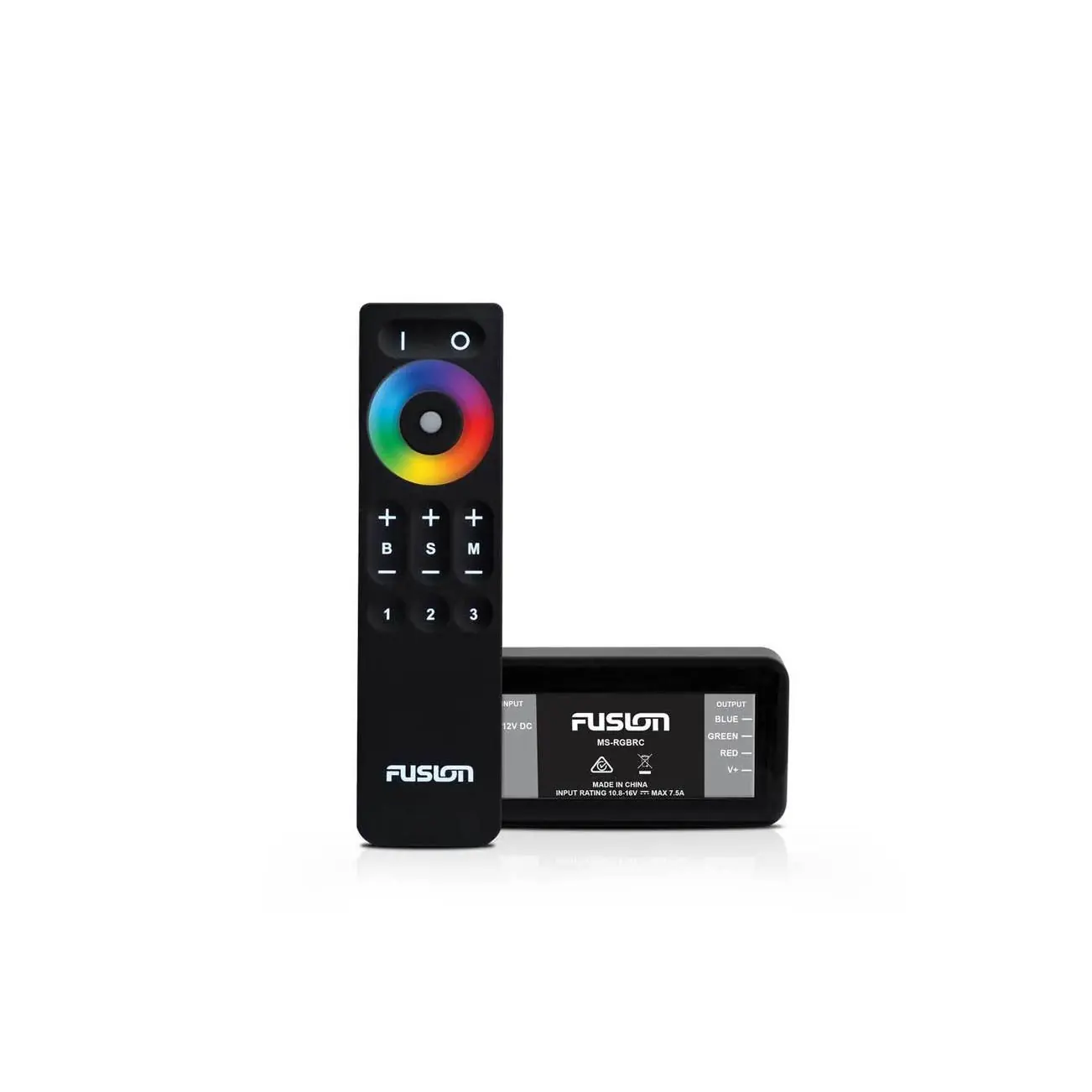

The MS-RGBRC system includes the control module, wireless remote control, remote control mounting bracket, fuse holder with 5" wire leads, and a 7.5A ATO fuse installed. The remote control operates on the 2.4 GHz frequency range, allowing for wireless control without the need for line-of-sight. The remote requires two AAA batteries (not included) and has an operating range of up to 10 meters (approximately 32 feet).
