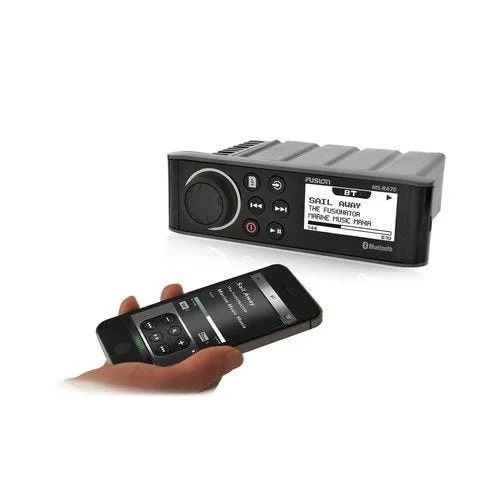

The Fusion MS-RA70 is a marine digital media receiver engineered to deliver high-quality audio entertainment in the marine environment. Designed to seamlessly replace standard DIN-sized non-marine stereos without the need for reconfiguring dashboard space, it offers versatile mounting options and advanced features tailored for boating enthusiasts.
- Bluetooth® Wireless Technology: Stream music wirelessly from compatible Apple or Android devices.
- Fusion-Link™ Wireless Control: Control your music via the Fusion-Link app available for iOS and Android devices.
- Multi-Zone™ Technology: Manage two independent audio zones with localized menu controls, including zone naming.
- IPX7 Waterproof Front Panel: Designed to withstand marine environments, the front panel is rated IPX7 when properly installed.
- Optically Bonded LCD Display: Provides a clear and durable display, enhancing visibility in various lighting conditions.
- Multiple Mounting Options: Install with a conventional flush finish or integrate into a glass helm for a seamless flat finish.
Technical Specifications
- Display: 128 x 64 optically bonded monochrome LCD
- Built-in Amplifier: Class-AB
- Power Output: 26 W RMS x 4 channels at 14.4 V DC input (<10% THD)
- Peak Power: 200 W
- Inputs:
- Rear USB port for MP3 playback and device charging
- Auxiliary input for external audio devices
- Outputs:
- Two independent audio zones
- Discrete pre-out and sub-out for Zone 1
- Wireless Connectivity:
- Bluetooth 2.4 GHz
- ANT wireless technology
- Water Resistance: IPX7-rated front panel when properly installed
- Operating Temperature Range: 32°F to 122°F (0°C to 50°C)
- Power Input: 10.8-16 V DC
- Current (Max): 15 A
- NMEA 2000 LEN: 1 (50 mA)
- Bluetooth Wireless Range: Up to 30 ft (10 m)
- ANT Wireless Range: Up to 10 ft (3 m)
- Compass-Safe Distance: 5.9" (150 mm)
Materials
- Chassis: Glass-filled composite for structural rigidity and lightweight design
- Front Panel: Optically bonded glass for enhanced durability and display clarity
Dimensions
- Physical Dimensions (H x W x D): 2.36" x 7.40" x 4.87" (60 x 188 x 123.5 mm)
- Weight: 19.6 oz (556 g)
Compatibility Information
- Apple Devices: Compatible with iPod/iPhone models with Lightning connectors running iOS 6.0 or later
- Android Devices: Supports Android smartphones running OS 4.1 or later
- Fusion-Link App: Available for iOS and Android devices for wireless control
