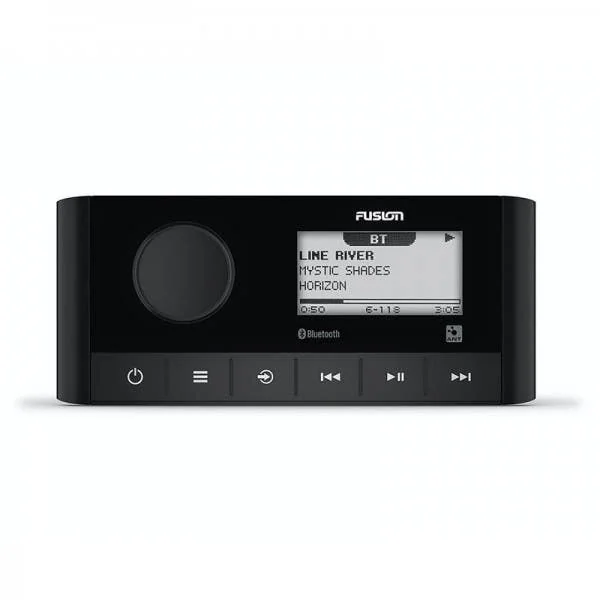

The Fusion MS-RA60 is a compact and modern marine stereo designed to deliver high-quality audio entertainment in challenging marine environments. It features a perimeter-bonded, anti-fogging 2.3-inch monochrome LCD display, ensuring clear visibility even in direct sunlight. The front panel meets IPX6 and IPX7 water ingress protection standards, providing durability against water exposure.
- Multi-Zone Technology: Supports up to two independent audio zones, each with customizable settings such as volume limits, zone naming, tone control, and balance.
- Built-in Class-D Amplifier: Delivers 22 watts RMS per channel at 4 ohms, offering efficient power output while consuming less current compared to standard Class-AB amplifiers.
- Wireless Control: Allows wireless control via the Fusion-Link app on compatible Apple and Android devices, and via ANT technology from compatible Garmin watches.
- Integrated DAB+ Tuner: Provides access to high-quality digital radio streaming where DAB and DAB+ are supported, enhancing the range of available radio stations.
- Connectivity Options: Includes Bluetooth for wireless music streaming, AM/FM radio, and an auxiliary input for additional audio sources.
Technical Specifications:
- Display: 2.3-inch perimeter-bonded monochrome dot matrix LCD
- Power Output: 22 watts RMS per channel at 4 ohms
- Bluetooth Range: Up to 30 feet (10 meters)
- ANT Wireless Range: Up to 10 feet (3 meters)
- Operating Voltage: 10.8-16 VDC
- Operating Temperature Range: 32° to 122° F (0° to 50° C)
- Ingress Protection: IPX6 and IPX7 (front panel only, when properly installed)
- Dimensions: 6.18 x 2.68 x 4.06 inches (156.9 x 68 x 103.2 mm)
- Weight: 11.1 ounces (316 grams)
Materials:
- Front Panel: Water-resistant black front panel with perimeter-bonded LCD
- Chassis: Aluminum die-cast chassis for durability
Compatibility Information:
- Mounting: Designed to fit the MS-RA55 mounting profile, facilitating easy upgrades without altering existing cutouts.
- Wireless Control: Compatible with Fusion-Link app on Apple and Android devices, and Fusion-Link Lite app on compatible Garmin watches.
