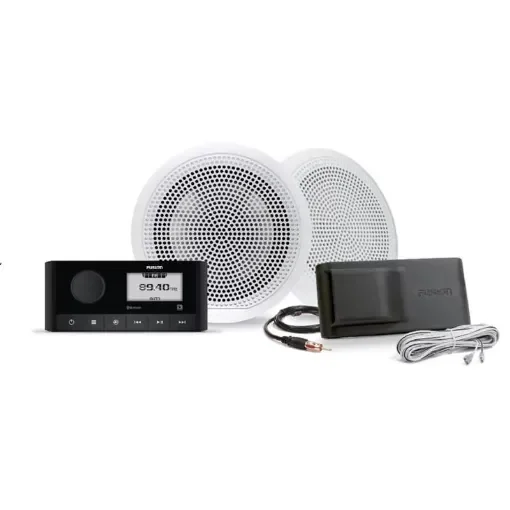

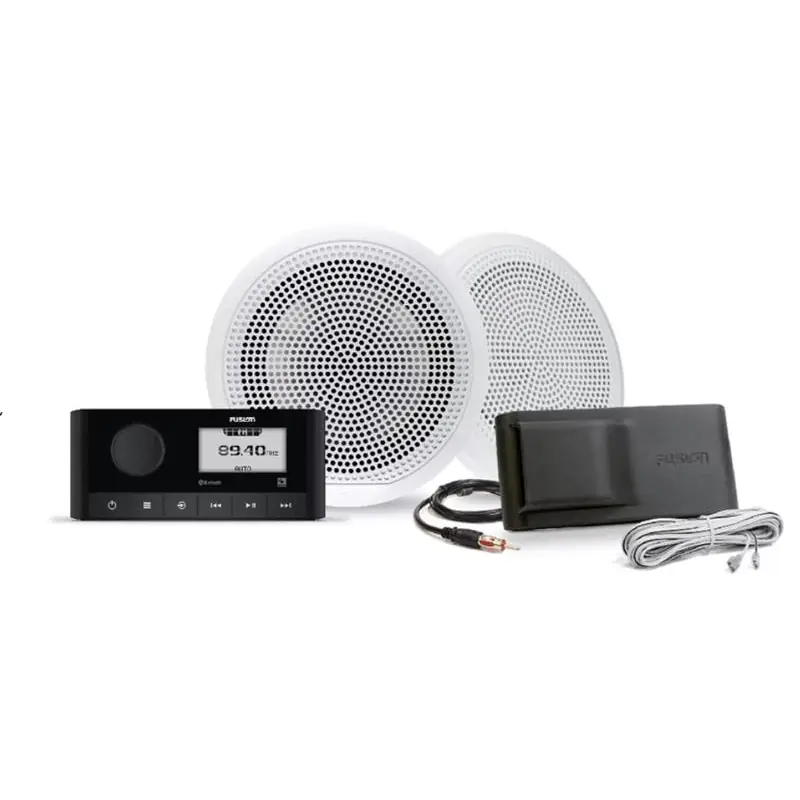

The Fusion MS-RA60 Marine Stereo Radio Reader Pack is a comprehensive audio solution designed for marine environments, offering a modern aesthetic and advanced features to enhance your on-water experience.
- Multi-Zone™ Technology: Supports up to two independent audio zones, each with customizable settings such as volume limits, zone naming, tone control, and balance, allowing for a personalized listening experience across your boat.
- Integrated DAB+ Module: Features a built-in DAB+ tuner, enabling high-quality digital radio streaming where DAB+ is supported, without the need for an external module.
- Class-D Amplifier: Equipped with a built-in Class-D amplifier, the MS-RA60 delivers increased power efficiency, providing 22 watts RMS per channel at 4 ohms, with a peak output of 45 watts per channel, ensuring clear and robust audio performance.
- Bluetooth Connectivity: Offers built-in Bluetooth A2DP/AVRCP for wireless music streaming and control, with a range of approximately 33 feet (10 meters), allowing seamless integration with compatible devices.
- AM/FM Tuner: Includes a built-in AM/FM radio with manual, seek, and preset tuning, capable of storing up to 15 FM and 15 AM station presets, providing diverse listening options.
- Auxiliary Input: Features a stereo RCA auxiliary input for connecting external audio sources, expanding playback options beyond built-in features.
- Fusion-Link Control: Allows wireless control via the Fusion-Link app on compatible Apple and Android devices, and Fusion-Link Lite on compatible Garmin watches, offering convenient management of audio settings.
Technical Specifications:
- Display: 2.3-inch perimeter-bonded monochrome dot matrix LCD, optimized for daylight viewing and protected against condensation and fogging.
- Ingress Protection: Front panel meets IPX6 and IPX7 water-resistant standards, ensuring durability in harsh marine environments.
- Power Output: 22 watts RMS per channel at 4 ohms, with a peak output of 45 watts per channel.
- Connectivity: Bluetooth 2.4 GHz @ +12 dBm nominal, ANT wireless technology with a range up to 10 feet (3 meters), and a DAB+ tuner.
- Dimensions: 2.68" x 6.18" x 4.06" (68 x 156.9 x 103.2 mm).
- Weight: 11.1 oz (316 g).
Materials:
- Front Panel: Constructed with a bonded LCD screen and a waterproof front panel rated IPX6 and IPX7, ensuring resistance to water ingress.
- Speakers: The EL-F651W speakers feature a full-range polypropylene cone woofer with a treated cloth surround, designed for durability and high-quality sound reproduction.
Compatibility Information:
- Mounting: The MS-RA60 is designed to fit the MS-RA55 mounting profile, facilitating easy upgrades without the need for altering existing cutouts.
- Wireless Control: Compatible with the Fusion-Link app on Apple and Android devices, and Fusion-Link Lite on compatible Garmin watches, enabling wireless control of audio settings.
