Key Features:

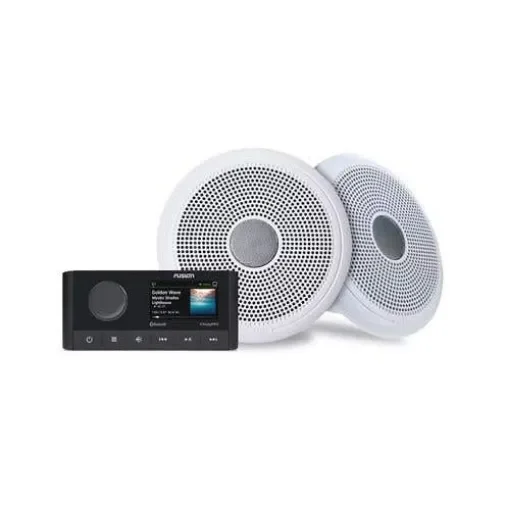

- Marine-Optimized Stereo System: The Fusion MS-RA210 is a compact marine stereo engineered to deliver high-quality audio entertainment on the water.
- Water-Resistant Design: Features an IPX6 and IPX7 rated water-resistant front panel, ensuring durability in harsh marine environments.
- Integrated Digital Signal Processing (DSP): Optimizes sound quality in all environments and at all volume levels, providing a superior listening experience.
- Multi-Zone Technology: Allows control of two distinct audio zones, each with advanced localized controls such as volume limits and zone naming.
- Connectivity Options: Supports Bluetooth®, DAB+ radio, AM/FM radio, AUX, and USB connections.
- Fusion-Link Control: Enables integration with compatible Garmin multifunction displays for direct control via the GPS.
Technical Specifications:
- Display: 2.7-inch color LCD screen.
- Amplifier: Built-in Class-D amplifier with a peak power output of 200W.
- Power Output: 26W RMS per channel at 14.4V input with less than 10% Total Harmonic Distortion (THD).
- Frequency Response: 80Hz to 18kHz.
- Impedance: 4 ohms.
- Operating Temperature Range: 0°C to 50°C (32°F to 122°F).
- Waterproof Rating: Front panel rated IPX6 and IPX7.
- NMEA 2000 Compatibility: Yes.
- Bluetooth Range: Up to 30 feet.
- ANT Wireless Range: Up to 10 feet.
- USB Port: 1 x USB 2.0.
- AUX Input: 1 x RCA input.
- SiriusXM Ready: Yes (requires SiriusXM Connect vehicle tuner).
- DAB+ Ready: Yes (requires DAB100A antenna module).
Materials:
- Front Panel: Water-resistant materials with IPX6 and IPX7 ratings.
- Speakers: Polypropylene cone with cloth surround and aluminum dome tweeter.
- Grilles: UV-resistant white grilles.
Dimensions:
- Stereo Unit:
- Cutout Dimensions: Width: 5.3125 inches, Height: 2.0625 inches, Depth: 5.6875 inches.
- Front-Panel Dimensions: Width: 6.0625 inches, Height: 2.75 inches, Depth: 0.875 inches.
- Speakers:
- Cutout Diameter: 4.992 inches.
- Frame Diameter: 6.714 inches.
- Mounting Depth: 2.474 inches.
Compatibility Information:
- Garmin Multifunction Displays: Compatible via NMEA 2000 for direct control.
- Smart Devices: Bluetooth connectivity for wireless control.
- Garmin Watches: Control via ANT technology.
