Key Features:
- Wireless Control: Operate the LED lighting of Fusion Signature Series 3 speakers and subwoofers from up to 10 meters (approximately 32 feet) away.
- Color Options: Select from a wide range of static and dynamic colors to complement your music and enhance your on-board audio entertainment experience.
- Intuitive Touch Controls: Easily adjust color, brightness, mode (static or dynamic), and speed using the intuitive color-select wheel on the remote.
- RGBW Integration: Combine RGB lighting with Cool White or Warm White to create an unprecedented color spectrum.
Technical Specifications:
- Input Voltage: 10.8 - 16V DC
- Output Current: 2A maximum per color terminal
- Maximum Capacity: Supports up to 10 Fusion CRGBW LED speakers (5 pairs)
- Remote Control Frequency: 2.4GHz at 10dBm nominal
- Operating Temperature: 32°F - 122°F (0°C - 50°C)
- Storage Temperature: -4°F - 158°F (-20°C - 70°C)
- Remote Control Battery Type: 2 AAA batteries (not included)
- Fuse: 7.5A/ATO fuse included
- IP Rating: None (not water or dust resistant)
Materials: The control module and remote are constructed with durable materials suitable for marine environments. However, they are not specified as water or dust resistant.
Dimensions:
- Control Module: Approximately 8.3 cm (3.25 inches) in length, 4.4 cm (1.75 inches) in width, and 2.2 cm (0.875 inches) in height.
- Remote Control: Approximately 15 cm (5.91 inches) in length and 4 cm (1.57 inches) in width.
Compatibility Information: Designed specifically for Fusion Signature Series 3 marine speakers and subwoofers. Ensure compatibility with your existing Fusion audio system before purchase.

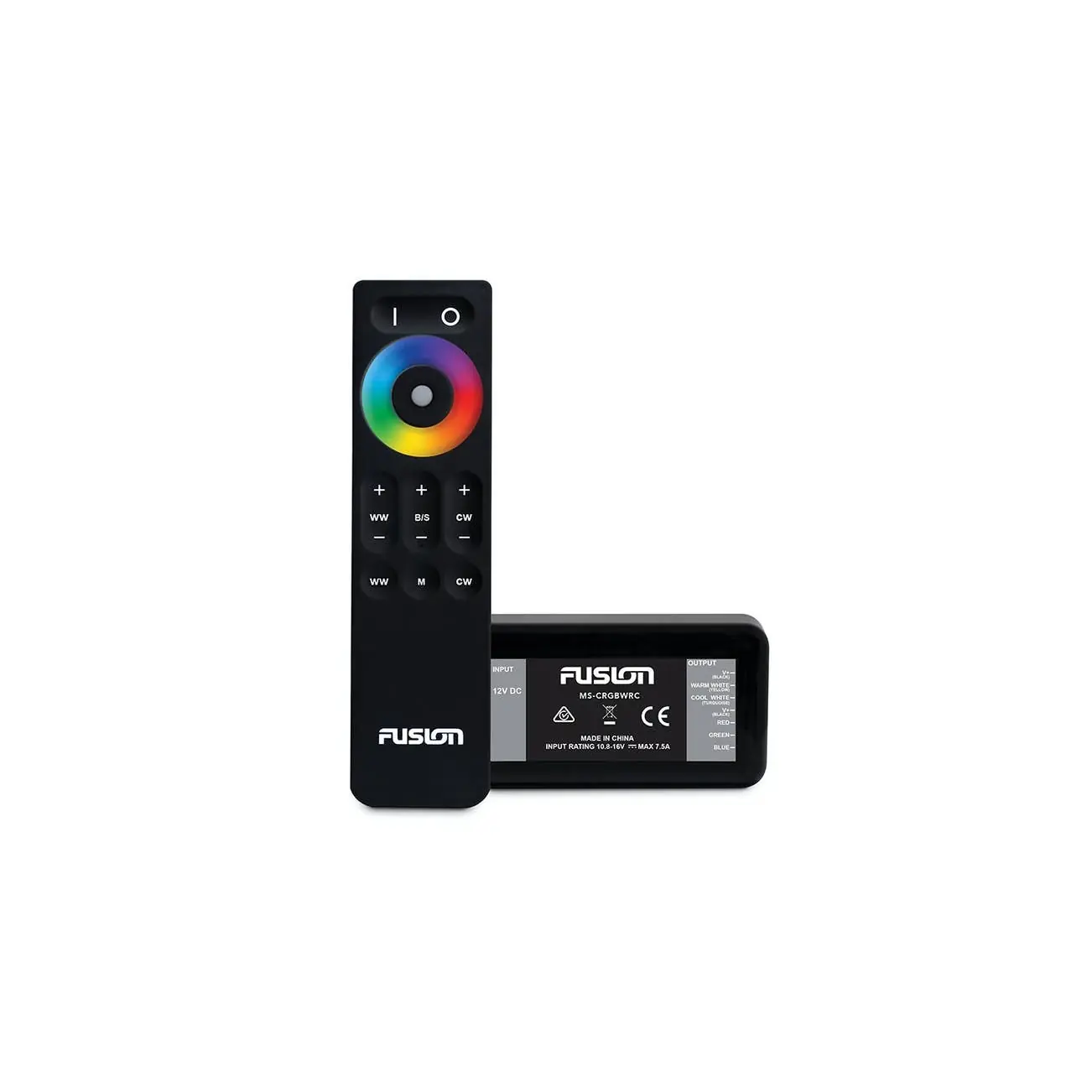

Additional Details: The MS-CRGBWRC system includes a control module and a wireless remote control. The control module features separate terminals for Cool White, Warm White, Red, Blue, Green, and V+ (12V DC), accommodating wire up to 18 AWG. An inline 7.5A fuse is provided to protect the controller. The remote operates on the 2.4GHz frequency range, allowing control without the need for line-of-sight. Please note that the lighting controller module and remote control are not water or dust resistant.
