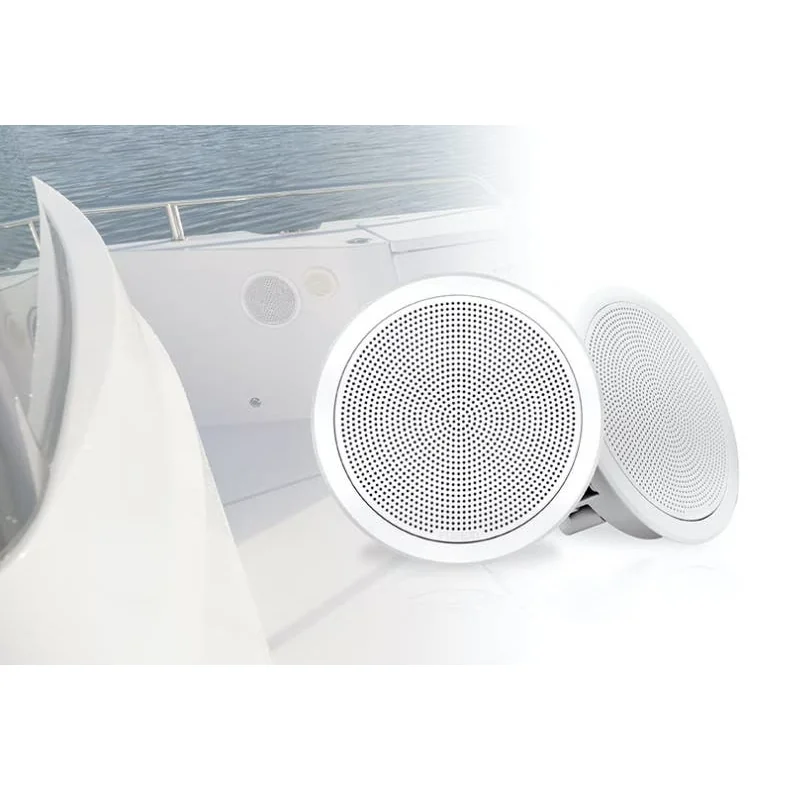

The Fusion FM-S10RW FM Series 10" 400W Flush Mount Marine Subwoofer is engineered to deliver high-quality bass in a sleek, minimalist design, complementing modern boat aesthetics. Its innovative mounting system ensures a flush installation with a mounting flange no thicker than 3mm [1/8"], providing a premium, near-flat finish. With an IP65 weatherproof rating, True-Marine™ accreditation, and a 3-year warranty, this subwoofer is built to withstand harsh marine environments.
- Optimized 2.1 Configuration: When paired with FM Series speakers and a Fusion Multi-Zone™ stereo with DSP, it enables the creation of a 2.1 audio zone, simplifying installation and reducing system costs by adding bass without the need for an external amplifier.
- Quality Audio Reproduction: Delivers quality low-frequency audio at any volume level.
- Innovative Design Aesthetics: Features a low-profile, near-flat installation for a visually appealing finish, enhancing the aesthetics of any vessel.
- Non-Intrusive Mounting System: Utilizes 'speaker legs' to secure the subwoofer without creating screw holes in the vessel.
- True-Marine™ Designed and Engineered: Extensively tested to perform in harsh marine environments, carrying an IP65 weatherproof rating and True-Marine accreditation.
- Designed to Comply with ISO12216: Tested to international standards for pressure and watertightness, ensuring high industry standards for quality and robustness.
Technical Specifications:
- Subwoofer Size: 10"
- Peak Power: 400 Watts
- RMS Power Rating: 120 Watts
- Efficiency (1W/1M): 87 dB
- Frequency Response: 30 Hz - 2 kHz
- Nominal Impedance: 4 Ohms
- Recommended Amplifier Power (RMS): 40 - 300 W/Ch
- Cone/Surround Material: Polypropylene with rubber surround
- Mounting Diameter Clearance: 269mm [10-9/16"]
- Mounting Depth Clearance: 140mm [5-1/2"]
- Optimum Enclosure Volume: 40L
- Operating Temperature Range: 0 to 50°C (32 to 122°F)
- Storage Temperature Range: -20 to 70°C (-4 to 158°F)
- Water and Dust Resistance (IPX rating): IP65
- Subwoofer Dimensions: Length x Height x Depth: Ø 284mm x 137mm [Ø 11-3/16" x 5-3/8"]
- Warranty: 3 years
Materials:
- Cone Material: Polypropylene
- Surround Material: Rubber
Dimensions:
- Mounting Diameter Clearance: 269mm [10-9/16"]
- Mounting Depth Clearance: 140mm [5-1/2"]
- Subwoofer Dimensions: Length x Height x Depth: Ø 284mm x 137mm [Ø 11-3/16" x 5-3/8"]
