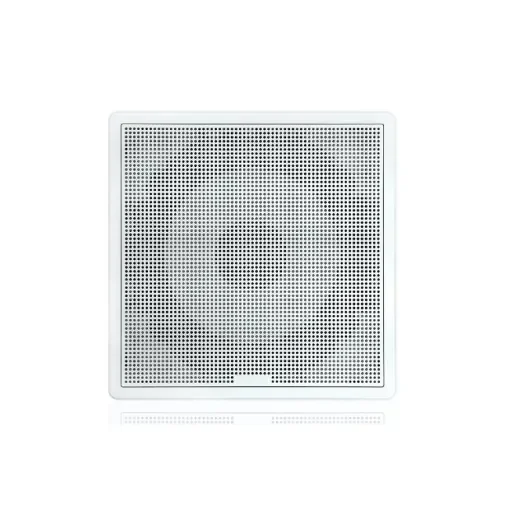

Fusion - FM Series 10" Flush-Mount Marine Subwoofer - 010-02301-11

Manufacturer: Fusion
Experience powerful bass with the Fusion FM Series 10" marine subwoofer, designed for seamless installation and durability.
Manufacturer part number: 010-02301-11
GTIN: 0753759236724
Vendor: Cabesto
Availability: In stock
€199.00
i h

The Fusion FM Series 10" Flush-Mount Marine Subwoofer is engineered to deliver high-quality bass in a sleek, low-profile design, enhancing your on-water audio experience. Its innovative flush-mount design ensures a nearly flat installation, blending seamlessly with your vessel's aesthetics.

  • Flush-Mount Design: Offers a low-profile, near-flat installation with a mounting profile of just 3 mm, providing a clean and minimalist appearance.
  • Versatile System Integration: Can be connected traditionally via an amplifier or integrated into a 2.1 audio zone with compatible Fusion multi-zone stereos, eliminating the need for an external amplifier.
  • True-Marine™ Design: Built to withstand marine environments, featuring an IP65 weatherproof rating for water and dust protection, and tested for UV and salt fog resistance.
  • High-Quality Materials: Constructed with a polypropylene cone and rubber surround for durability and enhanced bass reproduction.
  • Industry-Leading Warranty: Backed by a 3-year warranty, ensuring long-term reliability.

Technical Specifications:

  • Speaker Size: 10 inches
  • Power Handling: RMS: 120 watts, Peak: 400 watts
  • Sensitivity: 87 dB (1 W/1 m)
  • Frequency Response: 30 Hz - 2 kHz
  • Nominal Impedance: 4 ohms
  • Voice Coil Diameter: 1.5 inches
  • Cone Material: Polypropylene with rubber surround
  • Magnetic Structure: 41 oz
  • Operating Temperature Range: 32°F to 122°F (0°C to 50°C)
  • Compass-Safe Distance: 150 inches (381 cm)

Materials:

  • Cone: Injection-molded polypropylene (IMPP)
  • Surround: Rubber
  • Basket: Engineered plastics

Dimensions:

  • Round Model: Diameter: 11.18 inches (284 mm), Depth: 5.49 inches (139.5 mm)
  • Square Model: Width/Height: 11.18 inches (284 mm), Depth: 5.49 inches (139.5 mm)

Compatibility Information: Compatible with Fusion multi-zone stereos featuring DSP capabilities, such as the Apollo Series, for 2.1 audio zone integration without the need for an external amplifier.
