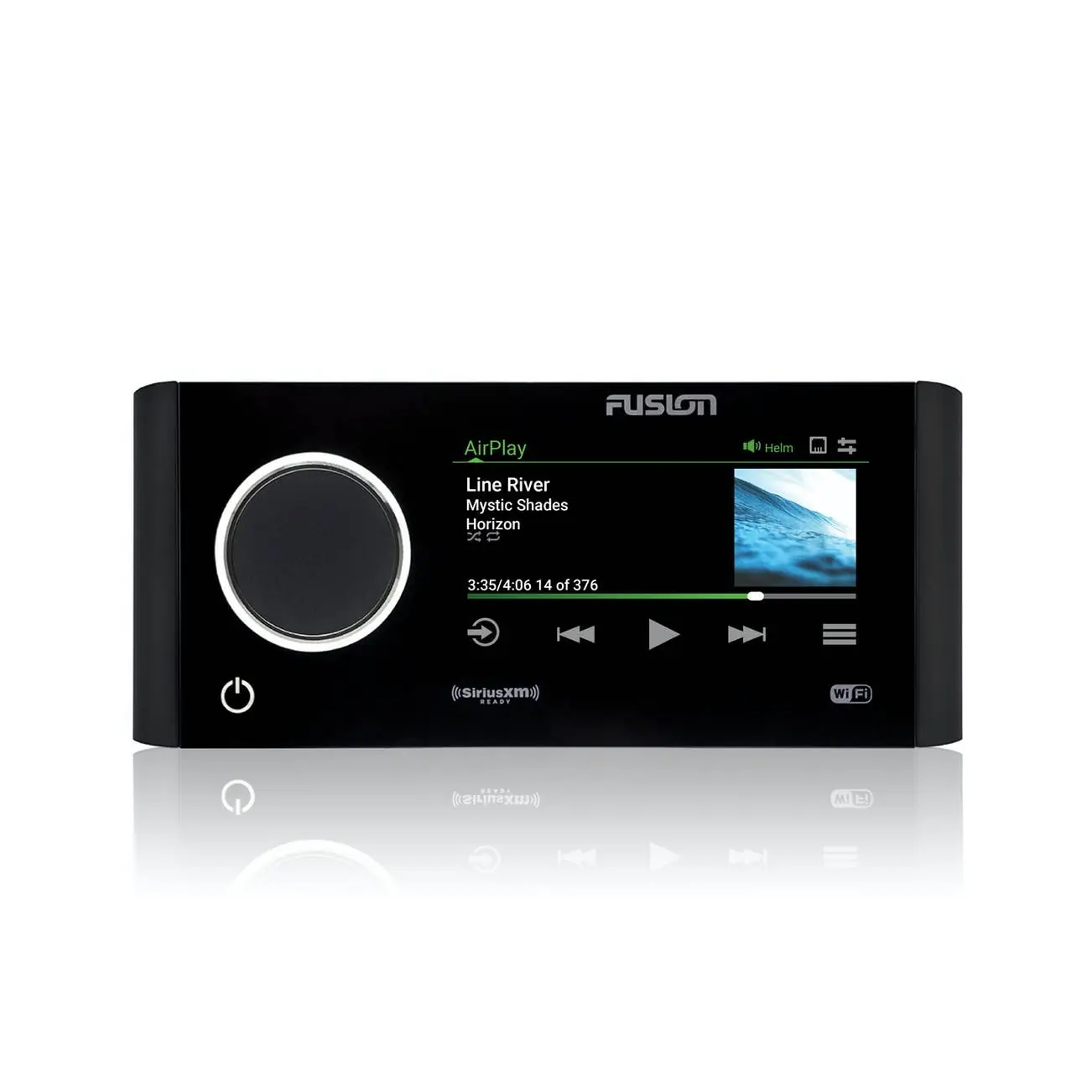

The Fusion Apollo MS-RA770 is a state-of-the-art marine stereo system that sets a new standard in audio excellence and innovative design. As the world's first touchscreen marine stereo with Apple AirPlay 2 and built-in Wi-Fi, it offers unparalleled connectivity and convenience. With Fusion's Digital Signal Processing (DSP), this stereo delivers superior sound quality in any environment, ensuring a truly immersive listening experience. Whether you're enjoying your favorite tunes or customizing the audio for different areas of your boat, the Apollo MS-RA770 delivers exceptional performance.
- Touchscreen Technology: Equipped with a 4.3" capacitive touch glass LCD color display, allowing intuitive control of your audio entertainment.
- Apple AirPlay 2: Seamlessly stream high-quality audio from compatible Apple devices over Wi-Fi.
- Built-in Wi-Fi: Offers higher data transfer rates compared to Bluetooth, enabling synchronized music playback across multiple Apollo stereos via the PartyBus network.
- Digital Signal Processing (DSP): Delivers superior sound quality with optimized loudness curves and a feed-forward limiter to prevent distortion.
- PartyBus Network: Allows grouping of multiple stereos, volume control, and source management across your boat's audio network.
- NMEA 2000 Compatibility: Connect and control the stereo from any supported Multi-Function Display (MFD).
- Fusion-Link App: Provides wireless control from Apple iOS, Android devices, or Garmin watches.
- Multi-Zone Control: Manage up to four independent audio zones with advanced localized menu controls.
Technical Specifications:
- Amplifier Output: 4 x 70 W RMS at 2 ohms, 10% THD; 4 x 43 W RMS at 4 ohms, 10% THD; Total output peak power: 280 W
- Inputs: Rear USB port, Two stereo AUX inputs, Digital optical input
- Outputs: 4-zone audio (line outs require separate amplification), SPDIF port supports TV audio output, Ethernet port
- Wireless Connectivity: Wi-Fi 2.4 GHz, Bluetooth up to 10 meters (30 feet), ANT up to 3 meters (10 feet)
- Water Resistance: IEC 60529 IPX7-rated front panel
- Operating Temperature Range: 0°C to 50°C (32°F to 122°F)
- Storage Temperature Range: -20°C to 70°C (-4°F to 158°F)
- Input Voltage: 10.8 to 16 V DC
- Current Consumption: Maximum: 15 A; Muted: Less than 900 mA; Off: Less than 200 mA
- Fuse: 15 A mini blade-type
- NMEA 2000 LEN @ 9 V DC: 1 (50 mA)
- Compass-Safe Distance: 15 cm (5.9 inches)
Materials:
- Front Panel: Glass monoblock touchscreen
- Chassis: Polycarbonate
Dimensions:
- Chassis Dimensions: 6.435" (W) x 1.955" (H) x 4.055" (D)
- Front-Panel Dimensions: 7.405" (W) x 3.235" (H) x 0.875" (D)
- Mounting Depth: 3.9375"
- Cutout Dimensions: 6.435" (W) x 1.955" (H)
Compatibility Information:
- Apple Devices: Compatible with iPod, iPhone, and iPad
- Android and Windows Phones: Compatible
- Garmin Watches: Compatible with Fusion-Link Lite app
- Multi-Function Displays (MFDs): NMEA 2000 compatible
- Fusion NRX Series Remote Controls: Compatible
Other Relevant Details:
- Over-the-Air Software Updates: Available via the Fusion-Link app
- SiriusXM Ready: Requires separate SiriusXM receiver and subscription
- Warranty: 3 years
