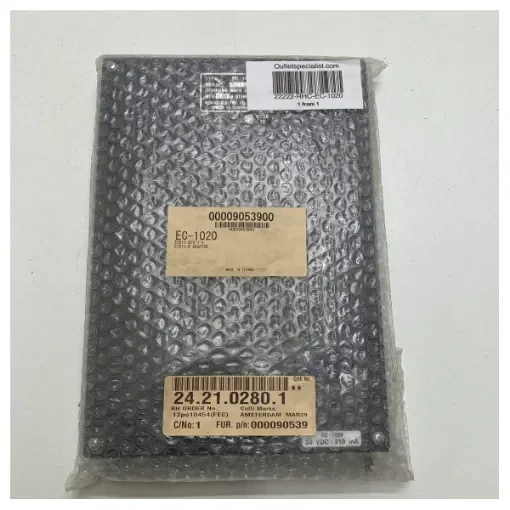

Furuno EC-1020 ECDIS B analogue ECDIS adapter interface
The Furuno EC-1020 is an ECDIS B analogue ECDIS adapter interface that enables seamless integration between analogue radar systems and ECDIS chart systems. The adapter offers a range of features and benefits that enhance the safety and efficiency of navigation.
Features:
- Compatibility: The EC-1020 is compatible with a wide range of Furuno analogue radar systems, including the DRS-6A, DRS-8A, DRS-15A, DRS-25A, and DRS-40A.
- ECDIS connectivity: The adapter can be connected to an ECDIS chart system via an RS-422 interface.
- Display output: The EC-1020 can display radar video and ECDIS chart information on the same screen, creating a centralised and intuitive navigation view.
- Overlay features: The adapter provides various overlay functions, allowing radar contacts and ECDIS symbols to be displayed simultaneously.
- Alarming: The EC-1020 can generate alarms for various navigation events, such as CPA (Closest Point of Approach) and TCPA (Time to Closest Point of Approach).
- Easy installation: The adapter is easy to install and configure.
Specifications:
- Input voltage: 12-24 VDC
- Current consumption: 100 mA
- Dimensions: 146 x 96 x 32 mm
- Weight: 0.5 kg
Benefits:
- Increased safety: The EC-1020 enhances navigational safety by integrating radar video and ECDIS chart information.
- Improved efficiency: The adapter simplifies navigation by displaying all necessary information on one screen.
